Application : For use with armoured cables, secures armouring & provides electrical continuity between armour & gland
entry component. Also provides a seal on the outer sheath of the cable thus ensuring mechanical strength and no damage
to cable sheathing. With compression type sealing technique these are used for both indoor and outdoor in all climate
conditions as it is weatherproof & waterproof.
Design Features : Compliant to BS 6121 -1 : 2005, 4 part armour lock with cone and lock ring provided for additional grip
to the armour.
Ingress Protection : IP 66
Also available in CIEL (Cast Integral Earth Lug). For orders add ‘C’ to Prod. Code.

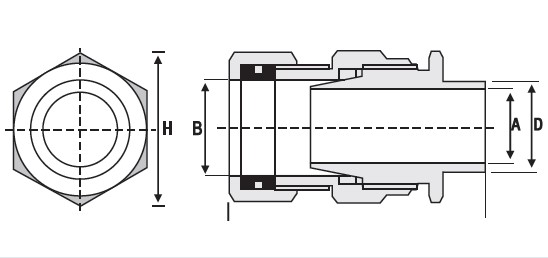

| Size | Cable Dimensions Accommodate | Gland Dimensions | Prod. Code | ||||||
| Under Armour Dia A Max. | Overall Dia. B Max. | Armour wire dia C | ISO Entry Thread | Approx length from shoulder | Hexagon Size | ||||
| mm | mm | mm | Dia | Length | Across flat | Across corners | |||
| D mm | E mm | F mm | G mm | H mm | |||||
| 16 | 8.6 | 13.50 | 0.90 | 16 | 10 | 40.00 | 20.00 | 23.00 | HCW 16 |
| 20 S | 12.50 | 17.00 | 0.90 / 1.25 | 20 | 10 | 47.00 | 22.00 | 29.00 | HCW 20 S |
| 20 | 14.40 | 20.50 | 0.90 / 1.25 | 20 | 10 | 47.00 | 26.00 | 29.00 | HCW 20 |
| 25 S | 17.80 | 23.80 | 1.25 / 1.60 | 25 | 10 | 50.00 | 31 | 34.00 | HCW 25 S |
| 25 | 20.40 | 27.00 | 1.25 / 1.60 | 25 | 10 | 50.00 | 34.00 | 38.50 | HCW 25 |
| 32 | 26.50 | 33.00 | 1.60 / 2.00 | 32 | 10 | 55.00 | 41.50 | 46.50 | HCW 32 |
| 40 S | 31.00 | 37.00 | 1.60 / 2.00 | 40 | 10 | 60.00 | 45.00 | 50.00 | HCW 40 S |
| 40 | 32.50 | 40.80 | 1.60/2.00 | 40 | 15 | 60.00 | 49.00 | 54.00 | HCW 40 |
| 50S | 37.80 | 45.00 | 2.00 / 2.50 | 50 | 15 | 65.00 | 51.00 | 64.00 | HCW 50 S |
| 50 | 44.00 | 51.50 | 2.00 / 2.50 | 50 | 15 | 65.00 | 62.30 | 69.50 | HCW 50 |
| 63S | 50.50 | 60.50 | 2.50 | 63 | 15 | 70.00 | 70.00 | 78.00 | HCW 63 S |
| 63 | 56.50 | 65.50 | 2.50 | 63 | 15 | 70.00 | 76.30 | 85.00 | HCW 63 |
| 75S | 62.50 | 72.00 | 2.50 | 75 | 15 | 75.00 | 85.00 | 95.00 | HCW 75 S |
| 75 | 67.50 | 78.50 | 2.50 / 3.15 | 75 | 15 | 75.00 | 91.00 | 112.00 | HCW 75 |
| 90 | 80.00 | 90.00 | 3.15 | 90 | 20 | 90.00 | 103.00 | 115.00 | HCW 90 |
