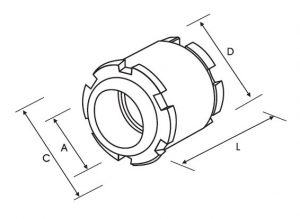

| Pipe Thread | Gland ID in mm A | Rubber ID | Locknut OD in mm C | Gland OD in mm D | Total Length L | Product Code |
| PF3/8 | 10 | 8 | 28 | 22 | 38 | HCG10 |
| PF 1/2 | 15 | 10 | 31.5 | 28 | 42 | HCG15 |
| PF3/4 | 20 | 13 | 37 | 33.5 | 46 | HCG20 |
| PF 1 | 25 | 15 | 45 | 42 | 52 | HCG25 |
| PF 1 1/4 | 30 | 24 | 46 | 49.5 | 57 | HCG30 |
| PF 1 1/2 | 40 | 30 | 63 | 55 | 65 | HCG35 |
| PF 1 1/2 | 40 | 34 | 63 | 55 | 65 | HCG40 |
| PF 2 | 45 | 38 | 77 | 69 | 73 | HCG45 |
| PF 2 | 50 | 44 | 77 | 69 | 73 | HCG50 |
| PF 2 1/2 | 55 | 48 | 96 | 85 | 83 | HCG55 |
| PF 2 1/2 | 60 | 54 | 96 | 85 | 83 | HCG60 |
| PF 3 | 65 | 60 | 112 | 100 | 95 | HCG65 |
| PF 3 | 70 | 64 | 112 | 100 | 95 | HCG70 |
