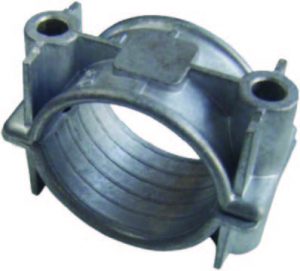

Double Bolt Fixing
Suitable for use with cables from diameter 51 mm to 114 mm. Double piece, Double fixing
design can be double stacked on common fixing.
Operating temperature – 60°C to + 100°C

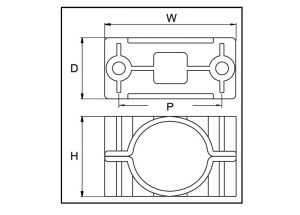

| Cable Diameter mm | Dimensions (mm) | Fixing Hole | Product Code | |||
| W | H | D | P | |||
| 30-40 | 70 | 46 | 40 | 57 | M10 | HATC 30-40 |
| 40-50 | 96 | 64 | 44 | 74 | M10 | HATC 40-50 |
| 51-57 | 96 | 68 | 59 | 76 | M10 | HATC 51-57 |
| 57-64 | 96 | 75 | 49 | 76 | M10 | HATC 57-64 |
| 64-70 | 96 | 84 | 64 | 118 | M10 | HATC 64-70 |
| 70-76 | 134 | 90 | 64 | 114 | M10 | HATC 70-76 |
| 76-83 | 142 | 96 | 64 | 114 | M12 | HATC 76-83 |
| 83-89 | 142 | 102 | 64 | 114 | M12 | HATC 83-89 |
| 89-95 | 154 | 114 | 64 | 114 | M12 | HATC 89-95 |
| 95-101 | 154 | 120 | 76 | 126 | M12 | HATC 95-101 |
| 101-108 | 169 | 134 | 76 | 140 | M12 | HATC 101-108 |
| 108-114 | 169 | 140 | 76 | 140 | M12 | HATC 108-114 |
