Cable Support Systems

HEX offers the components that route, carry and secure electrical cable: flexible and corrugated conduits with their fittings, iron and steel conduit accessories, galvanised switch and socket boxes and brackets, strut channels with channel nuts and clips, pipe clamps, cable trunking and nylon cable glands. Specifications, sizes and product codes are listed on each product page and in the catalogue.

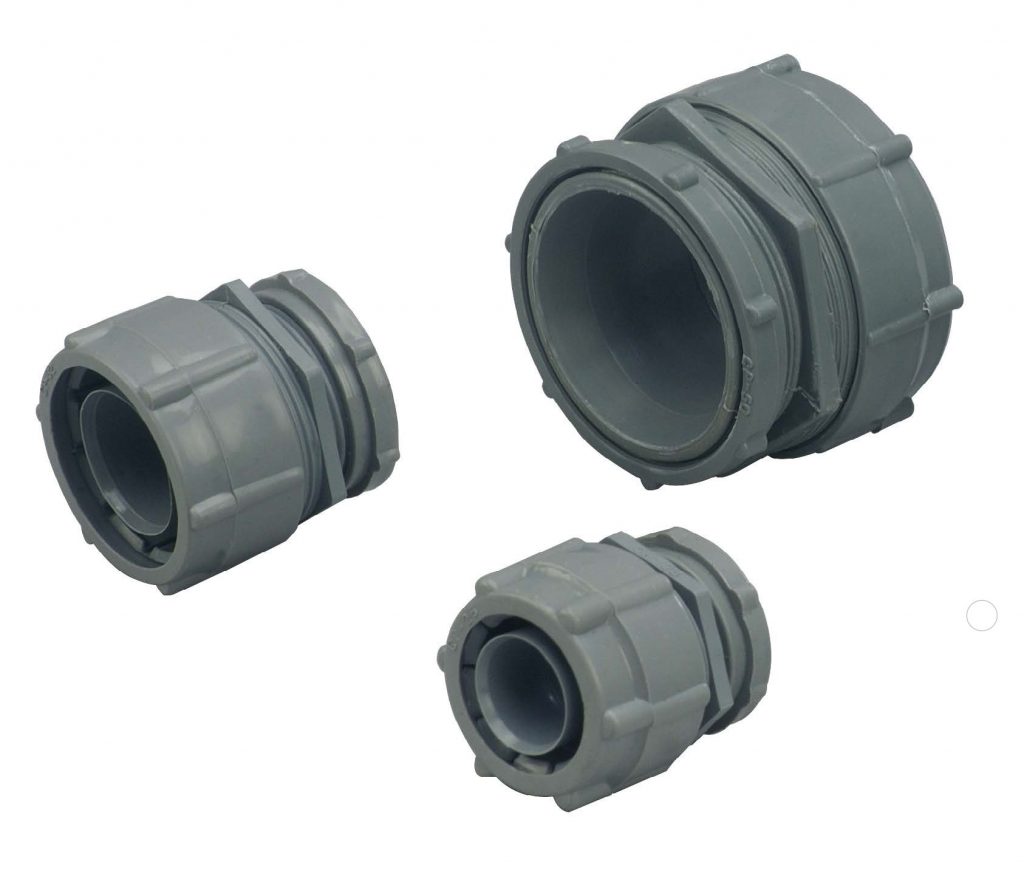

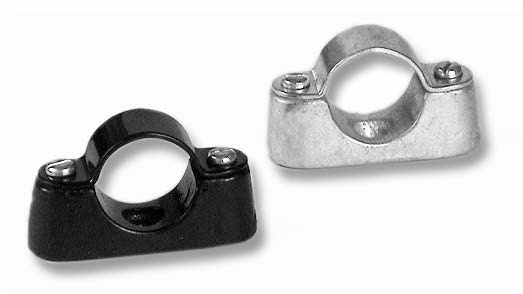

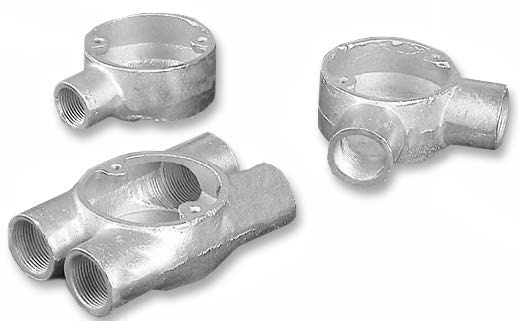

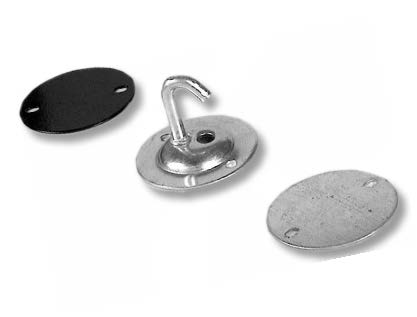

Conduits & Conduits Accessories

Boxes and Brackets

Strut Channels and Clamps

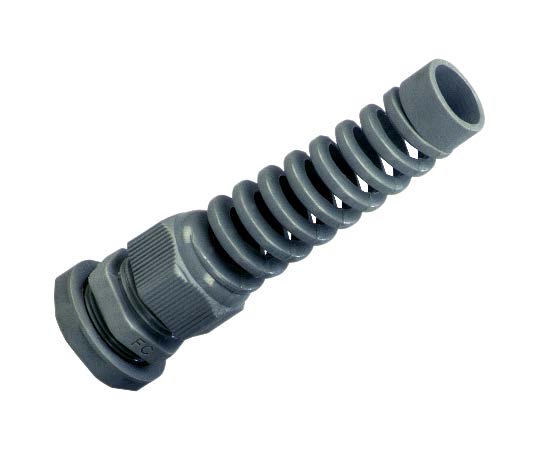

Nylon Cable Glands

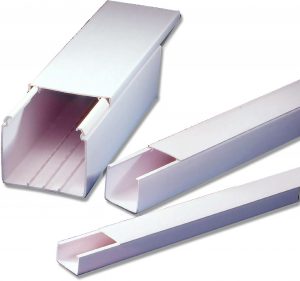

Cable Trunking

Technical FAQs

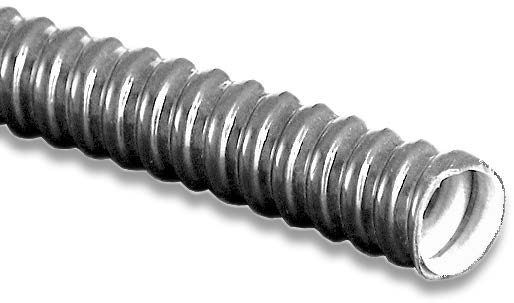

How do PVC coated and liquid tight flexible conduits differ?

Both have a helically wound galvanised steel core with PVC sheathing. The PVC coated conduit works from −15 °C to 80 °C and is rated for resistance to oil, acid and sea water. The liquid tight conduit works from −25 °C to 105 °C and suits applications with continual flexing and vibration.

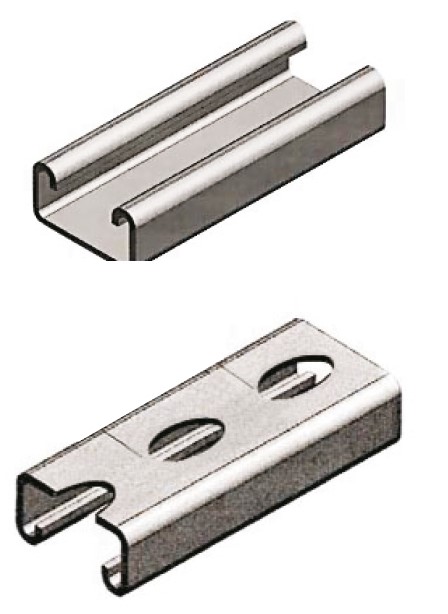

41 × 41 mm and 41 × 21 mm, in 1.5, 2.0 and 2.5 mm thicknesses and 3 m and 6 m lengths, plain or slotted.

The rubber lined split clamp has an EPDM lining that reduces noise by 18 dB(A) and is used for steel and PVC pipes. The plain split clamp has no lining.

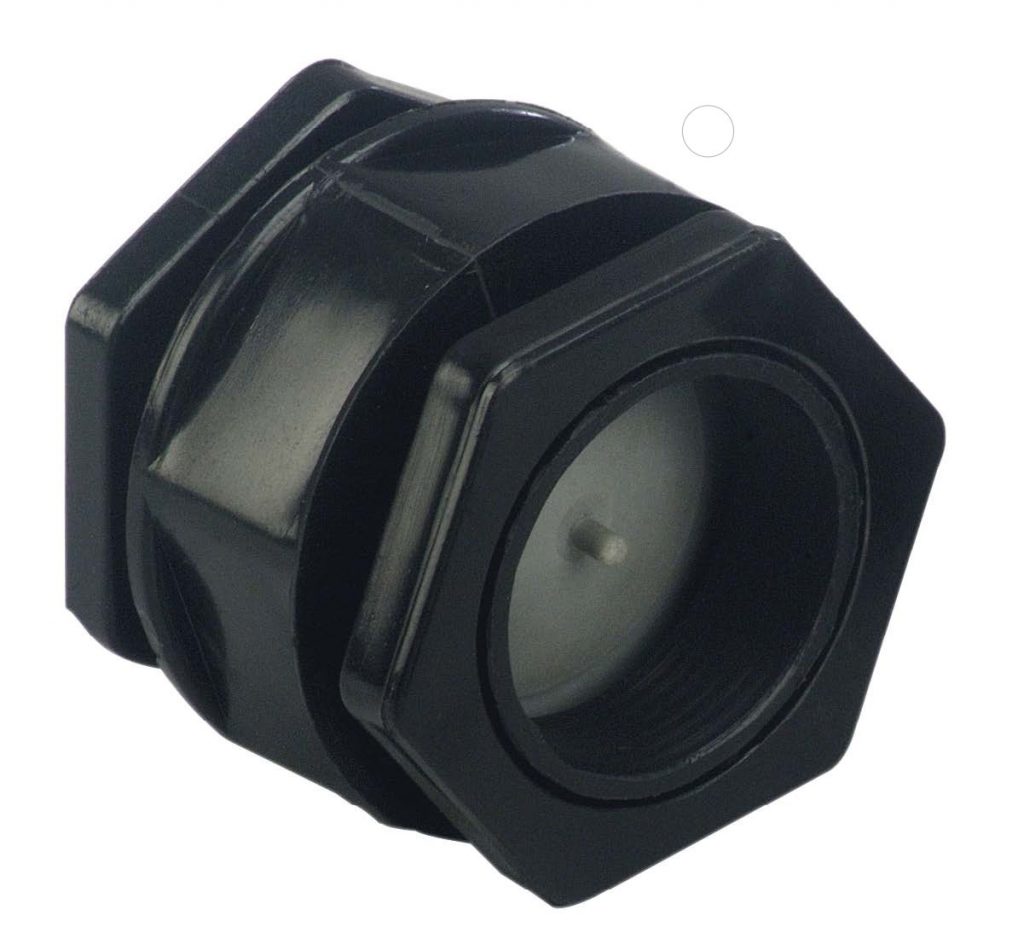

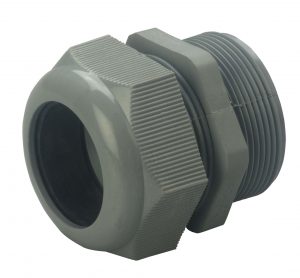

The PG threaded nylon glands are rated IP 68 at 5 bar. Static temperature range is −40 °C to 100 °C.

For project specifications, quantities and delivery schedules, share the product group, size and application, and our technical team will respond with the matching components.
