Switch Board/ Control Panel Accessories

PVC Cable Ducts / Channels / Panel Trunkings

We offer a comprehensive range of PVC Cable Ducts, Channels, Panel Trucks in different specifications based on the requirements of the clients.

HEX high-quality PVC Channels adhere to international standards in all processes of manufacturing, thus ensuring a product that meets the highest level of quality & safety. The salient features are:

Made of rigid poly vinyl chloride (PVC) of high tensile & compressive strength.
Highly durable, will not crack, peel or chip, also resistant to oil, fungus, salt solutions etc..
Non brittle, non inflammable and also warp proof.
Fast & efficient locking guaranteed because of specially designed duct & cover.
Slotting patterns prevents wire from popping up, while removing cover.
Elongated slots at the bottom makes flexible mounting possible.
Special orders regarding colours, length or modification of existing range can be manufactured as per your specs.


Sr. No.	Length in meters	Section Size Height x Width (mm2)	Channel Cross Section Area (mm)	Single Core Unsheathed Cable Cabe Housing Capacity No. of Wires			Prod. Code
	motor*	(mm2)	Aroa (mm)	OD 2.95 mm 1.5 mm2	OD 3.65 mm 2.5 mm2	OD 4.35 mm 4 mm2
1	2	15 x 15	225	13	8	6	HPCX 1515
2	2	15 x 25	375	22	14	10	HPCX 1525
3	2	25 x 25	625	36	23	17	HPCX 2525
4	2	30 x 25	750	43	28	20	HPCX 3025
5	2	40 x 30	1200	69	45	32	HPCX 4030
6	2	45 x 25	1125	65	42	30	HPCX 4525
7	2	45 x 30	1350	78	51	36	HPCX 4530
8	2	45 x 45	2025	116	76	54	HPCX 4545
9	2	45 x 60	2700	155	101	71	HPCX 4560
10	2	60 x 25	1500	86	56	40	HPCX 6025
11	2	60 x 45	2700	155	101	71	HPCX 6045
12	2	60 x 60	3600	207	135	95	HPCX 6060
13	2	75 x 25	1875	108	70	50	HPCX 7525
14	2	75 x 45	3375	194	126	89	HPCX 7545
15	2	75 x 60	4532	225	165	128	HPCX 7560
16	2	75 x 75	5625	323	211	149	HPCX 7575
17	2	100 x 100	10000	575	375	264	HPCX 1002

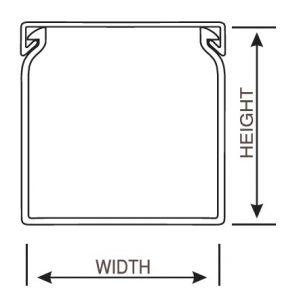

Size W x H (mm2)	Cross Section Area	Cable Housing Capacity (Nos.)			Product Code	Standard Pack Total Length in Metres
		OD 3.18 1.5 mm2 (16 AWG)	OD 3.53 2.5 mm2 (14 AWG)	OD 4.01 4.0 mm2 (12 AWG)
25 x 25	625	19	15	12	HPCXC - 2525	100
25 x 30	750	36	29	23	HPCXC - 2530	72
25 x 40	1000	48	39	31	HPCXC - 2540	72
25 x 60	1500	72	55	45	HPCXC - 2560	36
25 x 80	2000	92	75	59	HPCXC - 2580	36
25 x 100	2500	166	106	51	HPCXC - 25100	30
40 x 40	1600	81	65	51	HPCXC - 4040	36
40 x 60	2400	121	98	77	HPCXC - 4060	36
40 x 80	3200	160	130	102	HPCXC - 4080	36
40 x 100	4000	256	196	141	HPCXC - 40100	30
60 x 60	3600	180	146	114	HPCXC - 6060	24
60 x 80	4800	246	199	156	HPCXC - 6080	24
60 x 100	6000	308	247	194	HPCXC - 60100	16
80 x 60	4800	251	203	159	HPCXC - 8060	24
80 x 80	6400	337	272	214	HPCXC - 8080	24
80 x 100	8000	425	344	217	HPCXC - 80100	16
100 x 100	10000	531	429	336	HPCXC - 1002	16
