Plain Split Clamp - HEX

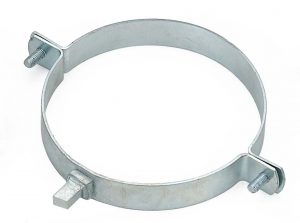

Plain Split Clamp

Home » Cable Support Systems » Pipe Clamps » Plain Split Clamp

Pipe Clamps

Plain Split Clamp

SPECIFICATIONS

APPLICATIONS


Size inches	Range mm	Diameter mm	Breaking Load mm	Safe Load kg	Product Code
1/2	20-25	22	600	200	HPSL 12
3/4	25-30	28	600	200	HPSL 34
1	31-36	34	600	200	HPSL 1
1 1/4	38-43	42	600	200	HPSL 114
2 1/2	47-51	48	600	200	HPSL 212
2	60-64	60	600	200	HPSL 2
2 1/2	74-80	75	600	200	HPSL 212
3	82-87	87	600	200	HPSL 3
4	108-113	111	600	200	HPSL 4
5	138-142	140	600	200	HPSL 5
6	159-166	163	600	200	HPSL 6
8	200-112	210	600	200	HPSL 8
