Rubber Lined Split Clamp

Home » Cable Support Systems » Pipe Clamps » Rubber Lined Split Clamp

Pipe Clamps

Rubber Lined Split Clamp

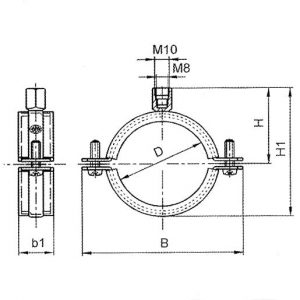

SPECIFICATIONS

CONSTRUCTION FEATURES :


Size inches	Range mm	Diameter mm	Breaking Load mm	Safe Load kg	Product Code
1/2	20-25	22	600	200	HRSC 12
3/4	25-30	28	600	200	HRSC 34
1	31-36	34	600	200	HRSC 1
1 1/4	38-43	42	600	200	HRSC 114
2 1/2	47-51	48	600	200	HRSC 212
2	60-64	60	600	200	HRSC 2
2 1/2	74-80	75	600	200	HRSC 212
3	82-87	87	600	200	HRSC 3
4	108-113	111	600	200	HRSC 4
5	138-142	140	600	200	HRSC 5
6	159-166	163	600	200	HRSC 6
8	200-112	210	600	200	HRSC 8
