Sprinkler Clamp - HEX

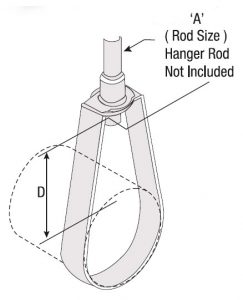

Sprinkler Clamp

Home » Cable Support Systems » Pipe Clamps » Sprinkler Clamp

Pipe Clamps

Sprinkler Clamp

SPECIFICATIONS

APPLICATIONS


Size inches	Dia. mm	Thick. mm	Width mm	Swivel Nut	Safe Load	Break kg.	Product Code
3/4	28	1.6	20	M10	350	1050	HSPC 34
1	35	1.6	20	M10	350	1050	HSPC 1
1 1/4	42	1.6	20	M10	350	1050	HSPC 114
1 1/2	48	1.6	20	M10	350	1050	HSPC 112
2	60	1.6	20	M10	350	1050	HSPC 2
2 1/2	75	1.6	20	M10	350	1050	HSPC 212
3	86	2	20	M10	350	1050	HSPC 3
4	114	2	20	M10	350	1050	HSPC 4
5	140	2.5	25	M10	350	1050	HSPC 5
6	163	2.5	25	M12	600	1800	HSPC 6
8	210	2.5	25	M12	600	1800	HSPC 8
