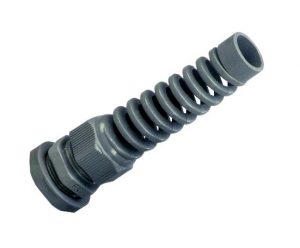

Designed to firmly hold the cable, our Spiral Nylon Glands are resistant to salt water, weak acid, alcohol, oil, grease and common solvency. These glands are available in grey and black color

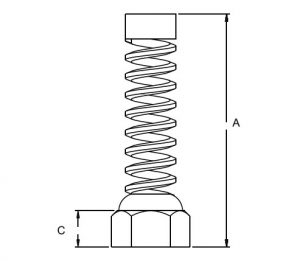

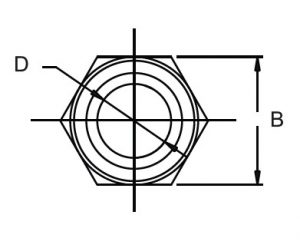

| Dimensions | Product Code | Stand. Pkg. | |||
| A | C | D | F | ||
| 47 | 15 | 8 | 7 | HSCG 7 | 25 |
| 56 | 18 | 9.5 | 8.5 | HSCG 9 | 25 |
| 67 | 21.5 | 11.5 | 11.5 | HSCG 11 | 25 |
| 74 | 23.5 | 13 | 11 | HSCG 13.6 | 25 |
| 87 | 27 | 14.5 | 12.5 | HSCG 16 | 25 |
| 105 | 32.5 | 17 | 15 | HSCG 21 | 25 |
| 47 | 15 | 8 | 7 | HSCGM 12 x 1.5 | 25 |
| 56 | 18 | 9.5 | 8.5 | HSCGM 16 x 1.5 | 25 |
| 74 | 23.5 | 13 | 11 | HSCGM 20 x 1.5 | 25 |
| 87 | 27 | 14.5 | 12.5 | HSCGM 25 x 1.5 | 25 |
| 10.5 | 32.5 | 17 | 15 | HSCGM 32 x 1.5 | 25 |
