For use with armoured or braided cable, provides mechanical cable retention and electrical continuity via armoured wire termination. These glands are mainly used in dry and indoor conditions.
3 part armour lock with cone and lock ring provided for additional grip to the armour.
Also available in CIEL (Cast Integral Earth Lug). For orders add ‘C’ to Prod. Code.

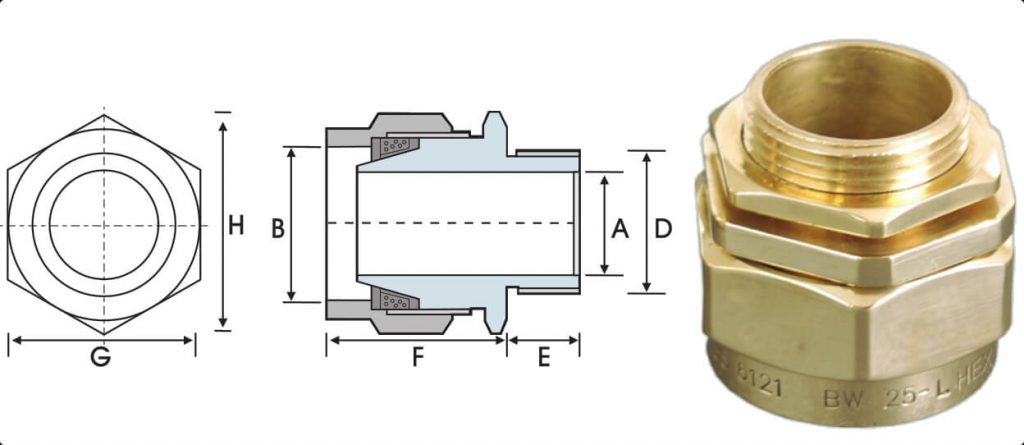

| Size | Cable Dimensions Accomodate | Gland Dimensions | Product Code | |||||
| Under Armour Dia. A Max. mm | Overall Dia. B Max. mm | ISO Entry Thread | Approx length from shoulder | Hexagon Size | ||||
| Dia. | Length | |||||||
| D mm | E mm | F mm | G mm | H mm | ||||
| 16 S | 8 | 12 | M16 | 9 | 20 | 20 | 22 | HBW - 16 S |
| 16 L | 8.6 | 13.5 | M16 | 9 | 20 | 20 | 22 | HBW - 16 L |
| 20 S | 12.3 | 17 | M20 | 9 | 20 | 22 | 24 | HBW - 20 S |
| 20 L | 14.3 | 20 | M20 | 9.5 | 20 | 25 | 27 | HBW - 20 L |
| 25 S | 19 | 23.25 | M25 | 9.5 | 22 | 31 | 34 | HBW - 25 S |
| 25 L | 20.4 | 27 | M25 | 9.5 | 22 | 33.5 | 37 | HBW - 25 L |
| 32 S | 23.5 | 28.5 | M32 | 9.5 | 25 | 35 | 38.5 | HBW - 32 S |
| 32 L | 26.5 | 33.5 | M32 | 9.5 | 25 | 40 | 45 | HBW - 32 L |
| 40 S | 31 | 37.5 | M40 | 12.5 | 25 | 44.5 | 49 | HBW - 40 S |
| 40 L | 33 | 41.5 | M40 | 12.5 | 25 | 48.5 | 54 | HBW - 40 L |
| 50 S | 39.5 | 48 | M50 | 12.5 | 28 | 56.5 | 63.5 | HBW - 50 S |
| 50 L | 44 | 54 | M50 | 12.5 | 30 | 61 | 68 | HBW - 50 L |
| 63 S | 50.5 | 60.5 | M63 | 14 | 33 | 69.5 | 77 | HBW - 63 S |
| 63 L | 56 | 65 | M63 | 14 | 33 | 75.5 | 84.5 | HBW - 63 L |
| 75 S | 62.5 | 72 | M75 | 14 | 40 | 83.5 | 93 | HBW - 75 S |
| 75 L | 67.5 | 78.5 | M75 | 14 | 40 | 89.5 | 99 | HBW - 75 L |
| 90 S | 75 | 85 | M90 | 20 | 48 | 100 | 110 | HBW - 90 S |
| 90 L | 78 | 88.5 | M90 | 20 | 48 | 102 | 115 | HBW - 90 L |
