Hex Single Compression Heavy-duty (SIBG) type Cable Glands

Domestic Cable Glands
Technical Data

Material

  • Brass as per IS 319
  • Also available in: Aluminium (Al.), Stainless Steel (S.S.), Mild Steel (M.S.)


Plating

  • Standard: Nickel Plated
  • Optional: Chrome Plating (on request)


Entry Threads

  • Metric (Standard)
  • Also available in: PG, BSC, NPT, BSP, NGT


Sealing Rubber Ring

  • Synthetic Rubber
  • Natural Rubber


Gland Standard

  • IS 12943 : 2005


Ingress Protection

  • IP-65 as per IS/IEC 60529 : 2001 (Reaffirmed 2014)


Test Certificate

  • Cert. No.: IN/CIMFR/TR22R/1130
  • Date: 18.07.2022
Application

Single Compression Glands are used under regular climatic conditions. These are Weather-Proof and Dust-Proof (IP 65) and may be used in corrosive conditions when protected by a shroud.

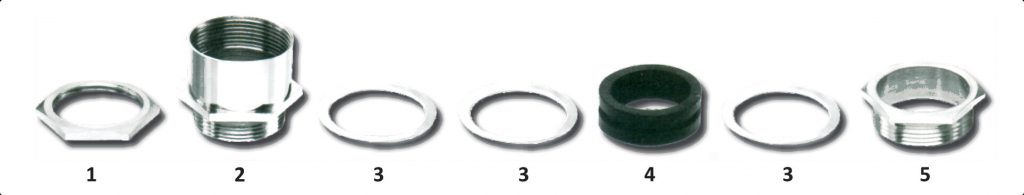

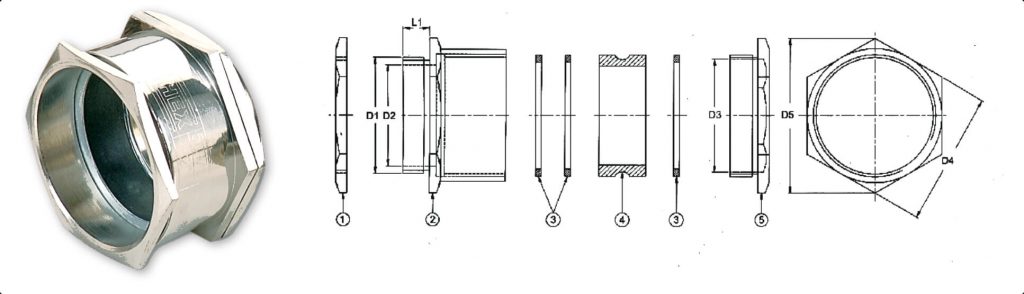

PARTS OF GLAND :

  1. Brass Check Nut
  2. Brass Gland Body
  3. MS Washers (3 Nos.)
  4. Rubber Outer Seal
  5. Brass Compression Nut

All metal parts are accurately machined for ease of assembly

Accessories

Shrouds and Earth tags are supplied separately and should be specified when ordering the Gland

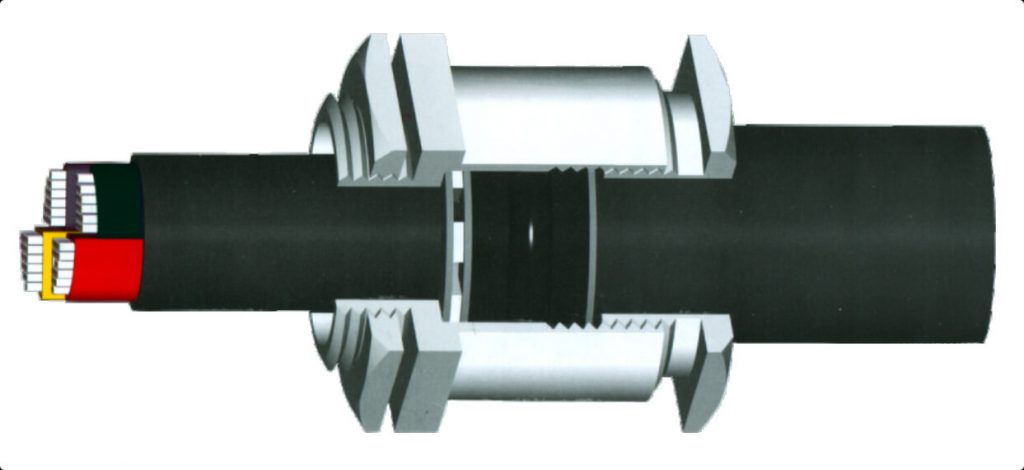

Assembly Sequence

a) Screw item 2 into apparatus (secure with item 1 if plain hole entry).

b) Pass items 5, 3 and 4 over cable before commencing to strip outer sheath.

c) Remove the outer sheath to the desired length depending on the lengths of leads required.

d) Pass item 3 over the cable and play out the armour wires one by one and then cut the armour wires according to the size of the washer. Insert the third metal washer over the inner sheath of the cable so that the bent armours are secured between the metal washer and the gland body.

e) Push the cable through item 2 and screw the item 5 into item 2. While doing so, the grooved rubber ring will contract in a radial direction and will grip the outer sheath of the cable.

WordPress Responsive Table

NOTE : Pitch of threads is 1.5 mm
