For use with all types of SWA extruded bedding cable where it is essential to produce IP 66 seal on to the outer sheath and also produce an IP 66 or explosion proof seal on inner sheath. It provides seals to both inner sheath and outer sheath of the cable.
2 part armour / Earth Lock, Knurled Armour Lock produces a low resistance earth clip, Inner and outer displacement seal, Rated at IP 66 in conjunction with entry thread seal.
Also available in CIEL (Cast Intergral Earth Lug), for orders add “C”to Prod. code

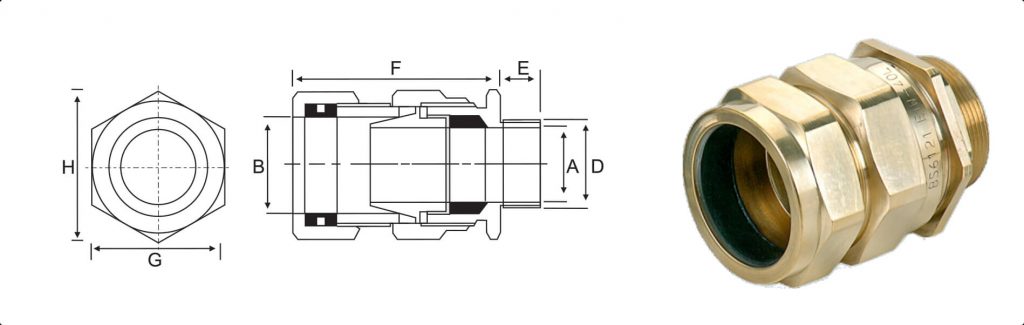

| Size | Cable Dimensions Accomodate | Gland Dimensions | Product Code | |||||
| Under Armour Dia. A Max. mm | Overall Dia. B Max. mm | ISO Entry Thread | Approx length from shoulder | Hexagon Size | ||||
| Dia. | Length | |||||||
| D mm | E mm | F mm | G mm | H mm | ||||
| 16 S | 8 | 11 | M16 | 10 | 45 | 20 | 22 | HE1W - 16 S |
| 16 L | 9 | 13.5 | M16 | 10 | 45 | 22 | 24 | HE1W - 16 L |
| 20 S | 12 | 15 | M20 | 10.5 | 45 | 22 | 24 | HE1W - 20 S |
| 20 L | 14 | 20 | M20 | 10.5 | 45 | 27 | 30 | HE1W - 20 L |
| 25 S | 18.5 | 23 | M25 | 10.5 | 50 | 31.5 | 35.5 | HE1W - 25 S |
| 25 L | 20.4 | 27 | M25 | 10.5 | 50 | 35 | 38.5 | HE1W - 25 L |
| 32 S | 26.5 | 32 | M32 | 13 | 60 | 41 | 46 | HE1W - 32 S |
| 32 L | 26.5 | 32 | M32 | 13 | 60 | 41 | 46 | HE1W - 32 L |
| 40 S | 31 | 36.5 | M40 | 15 | 60 | 45.5 | 51 | HE1W - 40 S |
| 40 L | 34 | 41.5 | M40 | 15 | 60 | 50 | 56 | HE1W - 40 L |
| 50 S | 40 | 45 | M50 | 15 | 65 | 57.5 | 64 | HE1W - 50 S |
| 50 L | 44 | 53 | M50 | 15 | 65 | 62 | 68 | HE1W - 50 L |
| 63 S | 51 | 60 | M63 | 15 | 65 | 70 | 79 | HE1W - 63 S |
| 63 L | 55.5 | 66 | M63 | 15 | 65 | 78.5 | 86 | HE1W - 63 L |
| 75 S | 62 | 70 | M75 | 15 | 75 | 84.5 | 95 | HE1W - 75 S |
| 75 L | 67.5 | 77 | M75 | 15 | 75 | 92 | 102.5 | HE1W - 75 L |
| 90 S | 78 | 94 | M90 | 18 | 90 | 104 | 115 | HE1W - 90 S |
| 90 L | 80 | 96 | M90 | 18 | 90 | 112 | 125 | HE1W - 90 L |
