Material
Plating
Entry Threads
Series
These glands are used under most climatic conditions and are used in corrosive conditions when protected by a shroud.

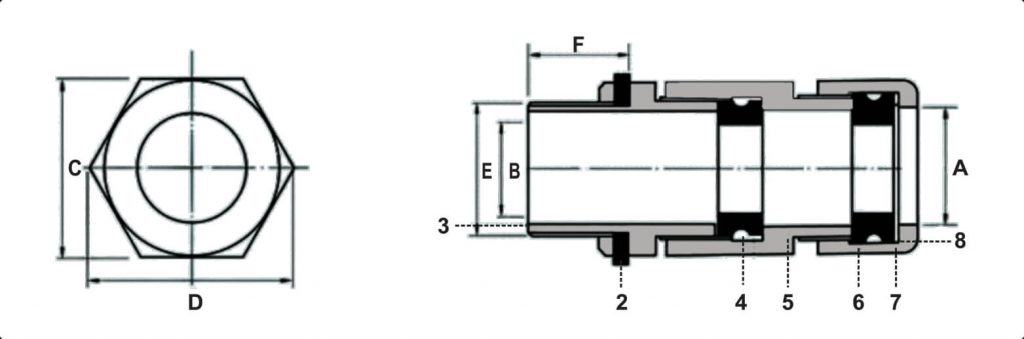

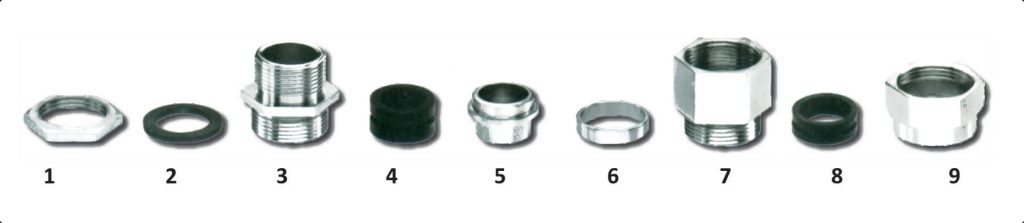

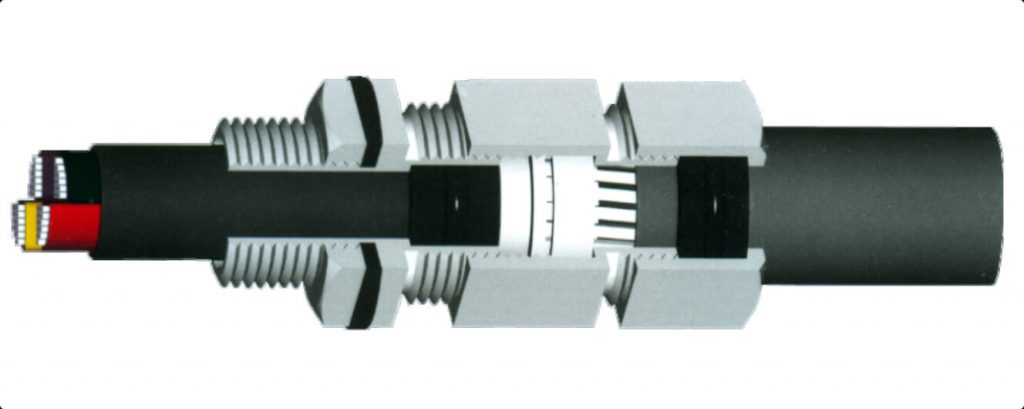

PARTS OF GLAND :
All metal parts are accurately machined for ease of assembly
Shrouds and Earth tags are supplied separately and should be specified when ordering the Gland
| Suitable Cable Overall Dia (mm) | Gland Size | A Dia | B Dia | C Dia | D Dia | E Dia | F Length | Product Code | ||
| From (mm) | To (mm) | (Inch.) | (mm) | (mm) | (inch) | (Inch.) | (mm) | (mm) | (mm) | |
| 6 | 9 | 3/8" | 10 | 10 | 9 | 17.5 | 20 | 1/2" | 25 | HDC - 3/8" |
| 9 | 12 | 1/2" | 12 | 16 | 12 | 22 | 25 | 5/8" | 25 | HDC - 1/2" |
| 12 | 14 | 5/8" | 16 | 17 | 15 | 24 | 27 | 5/8" | 25 | HDC - 5/8" |
| 14 | 16 | 3/4" | 19 | 20 | 15 | 25.5 | 29 | 3/4" | 25 | HDC - 3/4" |
| 16 | 18 | 7/8" | 22 | 20 | 20 | 26.5 | 31 | 7/8" | 24 | HDC - 7/8" |
| 18 | 21.5 | 1" | 25 | 23 | 24 | 31 | 36 | 1" | 25 | HDC - 1" |
| 21.5 | 26 | 1 1/8" | 28 | 27 | 26 | 35 | 40 | 1 1/8" | 25 | HDC - 1 1/8" |
| 26 | 30 | 1 1/4" | 32 | 31 | 30 | 41 | 47 | 1 1/4" | 24 | HDC - 1 1/4" |
| 30 | 33 | 1 1/3" | 35 | 34 | 32 | 43 | 50 | 1 3/8" | 25 | HDC - 1 3/8" |
| 33 | 36 | 1 1/2" | 38 | 36 | 42 | 46.5 | 53.5 | 1 1/2" | 23 | HDC - 1 1/2" |
| 36 | 43 | 1 3/4" | 50 | 45 | 43 | 56 | 65 | 1 3/4" | 25 | HDC - 1 3/4" |
| 43 | 46 | 2" | 50 | 51 | 50 | 59 | 68.5 | 2" | 25 | HDC - 2" |
| 46 | 53 | 2 1/4" | 57 | 55 | 57 | 65 | 75 | 2 1/4" | 25 | HDC - 2 1/4" |
| 52 | 60 | 2 1/2" | 63 | 64 | 63 | 77.5 | 89 | 2 1/2" | 24 | HDC - 2 1/2" |
| 60 | 68 | 2 3/4" | 70 | 72 | 69 | 81.5 | 94 | 2 3/4" | 25 | HDC - 2 3/4" |
| 65 | 72 | 3" | 75 | 76 | 75 | 87 | 100 | 3" | 25 | HDC - 3" |
| 72 | 77 | 3 1/4" | 82 | 79 | 77 | 91 | 105 | 3 1/4" | 25 | HDC - 3 1/4" |
| 77 | 86 | 3 1/2" | 88 | 88.5 | 82.5 | 103 | 118.5 | 3 1/2" | 25 | HDC - 3 1/2" |
| 86 | 96 | 4" | 100 | 102 | 89 | 114 | 131 | 4" | 25 | HDC - 4" |
