Hex Flame Proof-cum-weather Proof Double Compression Type Cable Glands

(Gas Group IIA Zone 1 & 2 Atmosphere)

Home » Brass Cable Gland Kits & Accessories » Domestic Cable Glands » Hex Flame Proof-cum-weather Proof Double Compression Type Cable Glands

Domestic Cable Glands

Technical Data

Material

Brass as per IS 319
Also available in: Aluminium (Al.), Stainless Steel (S.S.), Mild Steel (M.S.)

Plating

Nickel Plated (Standard)
Chrome Plating (On Request)

Entry Threads

Metric (Standard)
Also available in: BSC, PG, NPT, BSP, ET

Sealing Rubber Ring

Neoprene

Gland Standard

BS 6121

Ingress Protection & Testing

Flame Proof Testing
As per IS/IEC 60079-1 : 2007 (Reaffirmed 2014)

Weather Proof Testing

As per IS/IEC 60529 : 2001
IP-66 Rated

Test Certificate

IN/CIMFR/TC/TR22/R/1131 (Dt. 18.07.2022)

Series

HCGF

Application

These Glands are used in flammable gas / vapours area as well as in climatic conditions which are weather proof, water
proof and dust proof (IP 66). They may be used in corrosive conditions when protected by a shroud

PARTS OF GLAND :

Brass Check Nut
Rubber Washer
Brass Gland Body
Rubber Inner Seal
Brass Armour Clamping Cone
Brass Armour Clamping Ring
Brass Armour Clamping Nut
Rubber Outer Seal
Brass Compression Nut

All metal parts are accurately machined for ease of assembly

Accessories

Shrouds, Earth Tags, Stopping Plugs, Reducers, Adaptors, etc are available separately and should be specified when
ordering the gland.

Assembly Sequence

Engage & tighten item 2 and 3 into apparatus (Secure with item 1 if plain hole entry).
Pass item 9, 8 and 7 respectively over the cable before commencing to strip outer sheath.
Remove the sheath to the desired length depending on the lengths of leads required and pass item 6 over the exposed armour.
Cut the armour to length, lift wire ends, pass item 5 over the exposed bedding and beneath the armour.
Insert items 4 and 3 on the bedding of the cable.
Engage and tighten items 7 and 3.
Engage and tighten items 9 and 7

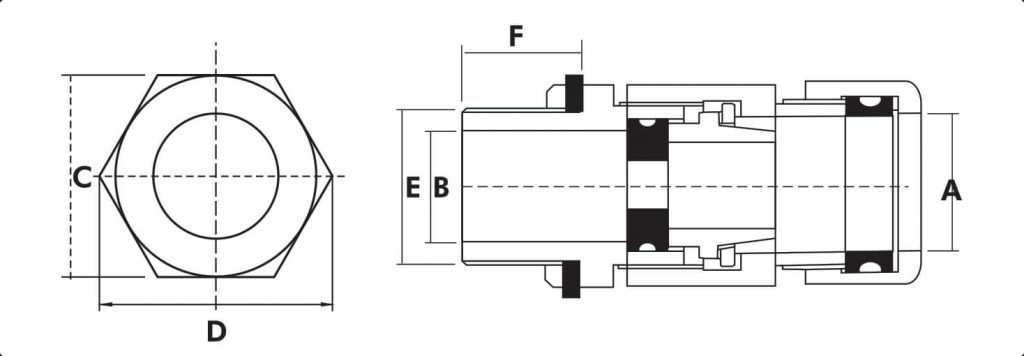

Suitable Cable Overall Dia (mm)		A Dia	B Dia	C (A/F)	D (A/C)	E Nipple Entry Thread			F Length	Product Code
From (mm)	To (mm)	(mm)	(mm)	(mm)	(mm)	Inch	(mm)	NPT	(mm)
6	13	15	12.5	22	25	3/4"	M20 X 1.5	1/2" NPT	25	HCGF 01 SS
13	16.5	17	14.5	25	28	3/4"	M20 X 1.5	1/2" NPT	25	HCGF 01 S
16.5	18.5	19	14.5	27.5	31.5	3/4"	M20 X 1.5	1/2" NPT	25	HCGF 01
16.5	18.5	19	14.5	27	31.5	1"	M20 X 1.5	3/4" NPT	25	HCGF 01A
18.5	20	22	14.5	31	36	1"	M20 X 1.5	3/4" NPT	25	HCGF 02
18.5	20	22	19	31	36	3/4"	M20 X 1.5	1/2" NPT	25	HCGF 02A
20	23	23	19	31	36	1"	M25 X 1.5	3/4" NPT	25	HCGF 03
23	26	27	20.5	37	42	1"	M25 X 1.5	3/4" NPT	25	HCGF 04
23	26	27	20.5	37	44	1 1/4"	M32 X 1.5	1" NPT	25	HCGF 04A
26	30	30	25.5	41	47	1 1/4"	M32 X 1.5	1" NPT	25	HCGF 05
26	30	30	26	41	47	1 1/2"	M40 X 1.5	1 1/4" NPT	25	HCGF 05A
30	33	34	31.5	46	53.5	1 1/2"	M40 X 1.5	1 1/4" NPT	25	HCGF 06
30	33	34	27	46	53.5	1 1/4"	M32 X 1.5	1" NPT	25	HCGF 06A
33	37	39	31	51	59	1 1/2"	M40 X 1.5	1 1/4" NPT	25	HCGF 07
37	41	43	44	56	64.5	2"	M50 X 1.5	1 1/2" NPT	25	HCGF 08
41	46	47	40	58	67	2"	M50 X 1.5	1 1/2" NPT	25	HCGF 09
46	52	53	45	66	76	2"	M50 X 1.5	1 1/2" NPT	25	HCGF 010
46	52	53	48	66	76	2 1/2"	M63 X 1.5	2" NPT	25	HCGF 010A
52	56	58	56	74	85	2 1/2"	M63 X 1.5	2" NPT	25	HCGF 011S
54	61	61	56	79	90	2 1/2"	M63 X 1.5	2" NPT	25	HCGF 011
61	66	67	65	83	95	3"	M75 X 1.5	2 1/4" NPT	25	HCGF 012
66	72	72	67	90	104	3"	M75 X 1.5	2 1/4" NPT	25	HCGF 013A
72	78	79	74	98	113	3 1/4"	M82 X 1.5	2 1/2" NPT	25	HCGF 013
78	84	85	80	106	122	3 1/4"	M85 X 1.5	2 1/2" NPT	25	HCGF 014
84	94	97	90	113	130	4"	M100 X 1.5	3" NPT	25	HCGF 015
94	104	105	101.5	126.5	146	4 1/2"	M115 X 1.5	3 1/2" NPT	25	HCGF 016
