Material
Plating
Entry Threads
Sealing Rubber Ring
Gland Standard
Ingress Protection
Test Certificates
Series

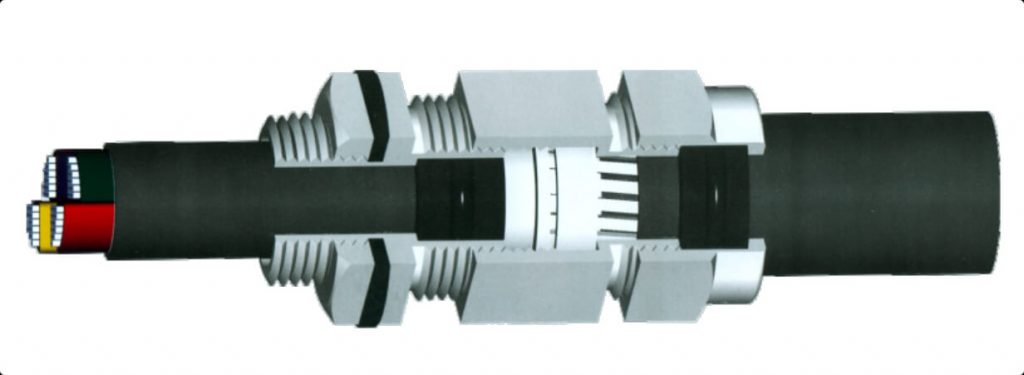

These glands are used under most climatic conditions and are used in corrosive conditions when protected by a shroud

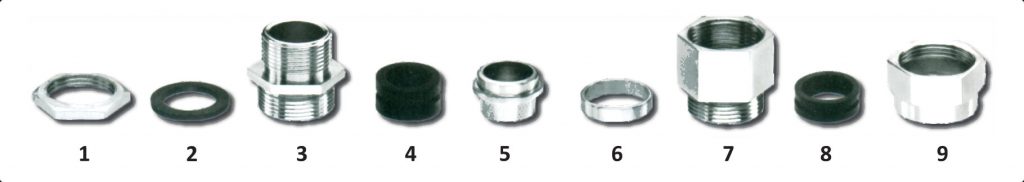

PARTS OF GLAND :
All metal parts are accurately machined for ease of assembly
Shrouds and Earth Tags are supplied separately and should be specified when ordering the gland.
| Suitable Cable Overall Dia (mm) | A Dia | B Dia | C (A/F) | D (A/C) | E Nipple Entry Thread | F Length | Product Code | |||
| From (mm) | To (mm) | (mm) | (mm) | (mm) | (mm) | Inch | (mm) | NPT | (mm) | |
| 6.00 | 13.00 | 15.00 | 12.50 | 22.00 | 25.00 | 3/4" | M20 X 1.5 | 1/2" NPT | 15.00 | HCGW 01SS |
| 13.00 | 16.50 | 17.00 | 14.50 | 25.00 | 28.00 | 3/4" | M20 X 1.5 | 1/2" NPT | 15.00 | HCGW 01S |
| 16.50 | 18.50 | 19.00 | 14.50 | 27.50 | 31.50 | 3/4" | M20 X 1.5 | 1/2" NPT | 15.00 | HCGW 01 |
| 16.50 | 18.50 | 19.00 | 14.50 | 27.50 | 31.50 | 1" | M25 X 1.5 | 3/4" NPT | 15.00 | HCGW 01A |
| 18.50 | 20.00 | 22.00 | 14.50 | 31.00 | 36.00 | 1" | M25 X 1.5 | 3/4" NPT | 15.00 | HCGW 02 |
| 18.50 | 20.00 | 22.00 | 19.00 | 31.00 | 36.00 | 3/4" | M20 X 1.5 | 1/2" NPT | 15.00 | HCGW 02A |
| 20.00 | 23.00 | 23.00 | 19.00 | 31.00 | 36.00 | 1" | M25 X 1.5 | 3/4" NPT | 15.00 | HCGW 03 |
| 23.00 | 26.00 | 27.00 | 20.50 | 37.00 | 42.00 | 1" | M25 X 1.5 | 3/4" NPT | 15.00 | HCGW 04 |
| 23.00 | 26.00 | 27.00 | 20.50 | 37.00 | 44.00 | 1 1/4" | M32 X 1.5 | 1" NPT | 15.00 | HCGW 04A |
| 26.00 | 30.00 | 30.00 | 25.50 | 41.00 | 47.00 | 1 1/4" | M32 X 1.5 | 1" NPT | 15.00 | HCGW 05 |
| 26.00 | 30.00 | 30.00 | 26.00 | 41.00 | 47.00 | 1 1/2" | M40 X 1.5 | 1 1/4" NPT | 15.00 | HCGW 05A |
| 30.00 | 33.00 | 34.00 | 31.50 | 46.00 | 53.50 | 1 1/2" | M40 X 1.5 | 1 1/4" NPT | 15.00 | HCGW 06 |
| 30.00 | 33.00 | 34.00 | 27.00 | 46.00 | 53.50 | 1 1/4" | M32 X 1.5 | 1" NPT | 15.00 | HCGW 06A |
| 33.00 | 37.00 | 39.00 | 31.00 | 51.00 | 59.00 | 1 1/2" | M40 X 1.5 | 1 1/4" NPT | 15.00 | HCGW 07 |
| 37.00 | 41.00 | 43.00 | 44.00 | 56.00 | 64.50 | 2" | M50 X 1.5 | 1 1/2" NPT | 16.00 | HCGW 08 |
| 41.00 | 46.00 | 47.00 | 40.00 | 58.00 | 67.00 | 2" | M50 X 1.5 | 1 1/2" NPT | 16.00 | HCGW 09 |
| 46.00 | 52.00 | 53.00 | 45.00 | 66.00 | 76.00 | 2" | M50 X 1.5 | 1 1/2" NPT | 16.00 | HCGW 010 |
| 46.00 | 52.00 | 53.00 | 48.00 | 66.00 | 76.00 | 2 1/2" | M63 X 1.5 | 2" NPT | 16.00 | HCGW 010A |
| 52.00 | 56.00 | 58.00 | 56.00 | 74.00 | 85.00 | 2 1/2" | M63 X 1.5 | 2" NPT | 16.00 | HCGW 011S |
| 54.00 | 61.00 | 61.00 | 56.00 | 79.00 | 90.50 | 2 1/2" | M63 X 1.5 | 2" NPT | 20.00 | HCGW 011 |
| 61.00 | 66.00 | 67.00 | 65.00 | 83.00 | 95.00 | 3" | M75 X 1.5 | 2 1/4" NPT | 20.00 | HCGW 012 |
| 66.00 | 72.00 | 72.00 | 67.00 | 90.50 | 104.00 | 3" | M75 X 1.5 | 2 1/4" NPT | 20.00 | HCGW 013A |
| 72.00 | 78.00 | 79.00 | 74.00 | 98.00 | 113.00 | 3 1/4" | M82 X 1.5 | 2 1/2" NPT | 20.00 | HCGW 013 |
| 78.00 | 84.00 | 85.00 | 80.00 | 106.00 | 122.00 | 3 1/4" | M82 X 1.5 | 2 1/2" NPT | 20.00 | HCGW 014 |
| 84.00 | 94.00 | 97.00 | 90.00 | 113.00 | 130.00 | 4" | M100 X 1.5 | 3" NPT | 20.00 | HCGW 015 |
| 94.00 | 104.00 | 105.00 | 101.50 | 126.50 | 146.00 | 4 1/2" | M115 X 1.5 | 3 1/2" NPT | 20.00 | HCGW 016 |
