Material
Plating
Entry Threads
Rubber Seals (Self-Extinguishing)
Continuous Operating Temperature
Chemical Resistance
Threading Standard
Ingress Protection
Series
The perfect gland for unarmoured PVC, XLPE and other synthetic cables.
This Metal Gland is a unique product that is very different from traditional metal glands.

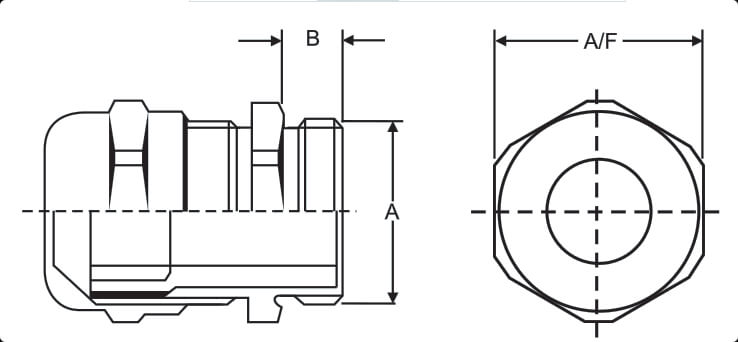

| Size | Min Cable Dia (mm) | Max Cable Dia (mm) | Width A/F (mm) | Product Code | |
| A Dia (mm) | B Length (mm) | ||||
| 12 | 8 | 3 | 6 | 14 | HIP68 - 12M |
| 16 | 8 | 5 | 9 | 17 | HIP68 - 16M |
| 20 | 10.5 | 8 | 11 | 22.5 | HIP68 - 20M |
| 25 | 10 | 11 | 16 | 29 | HIP68 - 25M |
| 32 | 11 | 15 | 21 | 35 | HIP68 - 32M |
| 40 | 14 | 19 | 27 | 43.5 | HIP68 - 40M |
| 50 | 14 | 26 | 34 | 55 | HIP68 - 50M |
| 63 | 15 | 38 | 48 | 67.5 | HIP68 - 63M |
