Earthing & Lightning Protection - Accessories

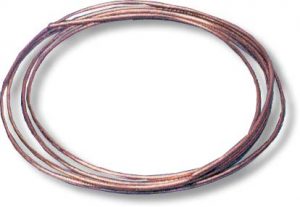

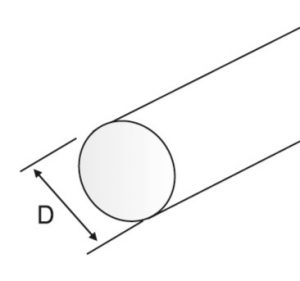

Bare Solid Circular Conductor

Bare Solid Circular Conductor
Cu to BS – 1433 – C101 / 103
Al to BS 2898 – 1350


Conductor	Dia. (D) mm	Cross Section Area mm2	Product Code
Copper	8	50.27	HBSC - 8C
Aluminium	8	50.27	HBSC - 8A

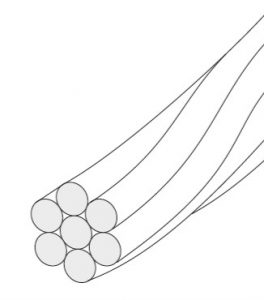

Bare Stranded Copper Conductor

Bare Stranded Copper Conductor
Soft Drawn Cu Conductor to BS – 6360


Size mm2	Standing No. / mm	Product Code
6	7 / 1.04	HBCU - 6
16	7 / 1.70	HBCU - 16
25	7 / 2.14	HBCU - 25
35	7 / 2.52	HBCU - 35
50	19 / 1.75	HBCU - 50
70	19 / 2.14	HBCU - 70
95	19 / 2.52	HBCU - 95
