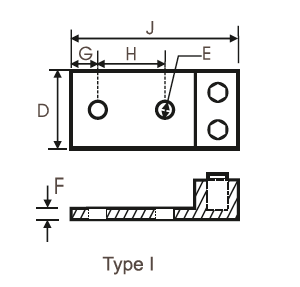

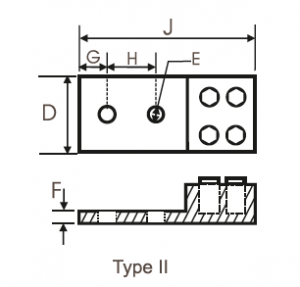

| Conductor Range | Stud Hole | Dimensions | Product Code | ||||||
| Max. | Min. | J | D | F | G | H | TYPE | ||
| 350 KCMIL | 6 STR | 01/02/09 | 104.65 (4.12) | 48.51 (1.91) | 7.87 (0.31) | 15.75 (0.62) | 44.45 (1.75) | I | HL2LA - 350 |
| 600 KCMIL | 4 STR | 01/02/09 | 141.73 (5.58) | 60.96 (2.40) | 11.17 (0.44) | 15.75 (0.62) | 44.45 (1.75) | II | HL2LA - 600 |
| 800 KCMIL | 350 KCMIL | 01/02/09 | 147.82 (5.82) | 81.03 (3.19) | 12.70 (0.50) | 15.75 (0.62) | 44.45 (1.75) | II | HL2LA - 800 |
