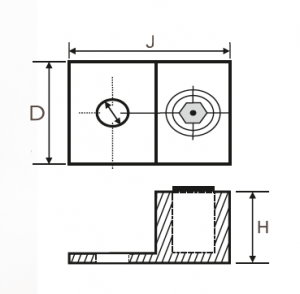

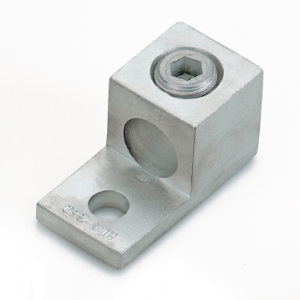

| Cable mm2 | Stud Hole E | Dimensions | Product Code | ||||
| A | D | G | H | J | |||
| 4 STR | 14 AWG | 27.00 (1.10) | 12.70 (0.50) | 5.95 (0.23) | 1/4 | 2.40 (0.09) | HLA 4 |
| 2 STR | 14 AWG | 29.40 (1.15) | 12.70 (0.50) | 7.55 (0.29) | 1/4 | 2.75 (0.10) | HLA 2 |
| 1/0 STR | 14 AWG | 37.10 (1.46) | 15.90 (0.62) | 11.10 (0.43) | 1/4 | 4.70 (0.18) | HLA 10 |
| 2/0 STR | 14 AWG | 37.10 (1.46) | 15.90 (0.62) | 11.10 (0.43) | 1/4 | 4.70 (0.18) | HLA 20 |
| 250 KCMIL | 6 STR | 50.60 (2.00) | 21.75 (0.85) | 12.75 (0.50) | 5/16 | 6.40 (0.25) | HLA 250 |
| 300 KCMIL | 6 STR | 50.60 (2.00) | 21.75 (0.85) | 11.90 (0.46) | 5/16 | 6.40 (0.25) | HLA 300 |
| 350 KCMIL | 6 STR | 57.15 (2.25) | 28.60 (1.12) | 12.70 (0.50) | 3/8 | 6.40 (0.25) | HLA 350 |
| 500 KCMIL | 4 STR | 71.50 (2.81) | 38.10 (1.50) | 19.05 (0.75) | 3/8 | 8.00 (0.31) | HLA 500 |
| 600 KCMIL | 2 STR | 81.00 (3.19) | 38.10 (1.50) | 20.60 (0.81) | 3/8 | 11.10 (0.43) | HLA 600 |
| 800 KCMIL | 300 KCMIL | 85.70 (3.37) | 44.50 (1.75) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | HLA 800 |
| 1000 KCMIL | 500 KCMIL | 85.70 (3.37) | 44.50 (1.75) | 22.20 (0.87) | 5/8 | 12.70 (0.50) | HLA 1000 |
