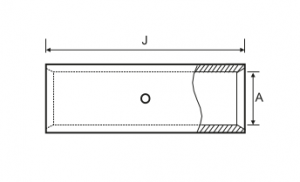

| Cable mm2 | Dimensions | |
| A | J | |
| HAHC - 2.5 | 2.5 | 22.2 |
| HAHC - 4 | 3.3 | 22.2 |
| HAHC - 6 | 3.7 | 22.2 |
| HAHC - 10 | 4.7 | 22.2 |
| HAHC- 16 | 5.5 | 44.4 |
| HAHC - 25 | 7.1 | 47.6 |
| HAHC - 35 | 8.4 | 47.6 |
| HAHC - 50 | 9.5 | 47.6 |
| HAHC - 70 | 11 | 50.8 |
| HAHC - 95 | 13.4 | 54 |
| HAHC - 120 | 15.5 | 65.1 |
| HAHC - 150 | 16.3 | 65.1 |
| HAHC - 185 | 18.4 | 65.1 |
| HAHC- 240 | 21.2 | 88.9 |
| HAHC- 300 | 23.8 | 88.9 |
| HAHC- 400 | 26.8 | 88.9 |
| HAHC- 500 | 30 | 114.3 |
| HAHC- 630 | 33.5 | 114.3 |
