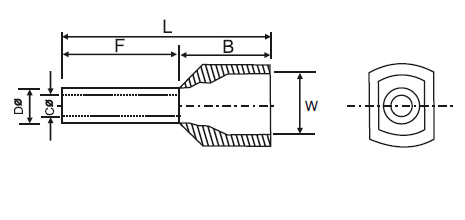

| HEX Product Code | Conductor (mm) | Dimensions in mm | Color | |||||
| F | L | W | B | D | C | |||
| HTSFI 0508 | 2 X 0.50 | 8.0 | 14.5 | 5.0 | 6.5 | 1.8 | 1.5 | White |
| HTSFI 7508 | 2 X 0.75 | 7.0 | 14.7 | 5.5 | 6.7 | 2.1 | 1.8 | |
| HTSFI 7510 | 2 X 0.75 | 10.0 | 16.7 | 5.5 | 7.1 | 2.3 | 2.0 | Grey |
| HTSFI 1008 | 2 X 1.00 | 8.0 | 15.1 | 5.5 | 7.1 | 2.3 | 2.0 | |
| HTSFI 101 | 2 X 1.00 | 10.0 | 17.1 | 5.5 | 7.2 | 2.6 | 2.3 | |
| HTSFI 1508 | 2 X 1.50 | 8.0 | 15.5 | 6.4 | 7.5 | 2.6 | 2.3 | |
| HTSFI 1512 | 2 X 1.50 | 12.0 | 19.5 | 6.4 | 8.5 | 3.3 | 2.9 | |
| HTSFI 2510 | 2 X 2.50 | 10.0 | 18.5 | 8.0 | 8.5 | 3.3 | 2.9 | |
| HTSFI 2513 | 2 X 2.50 | 13.0 | 21.5 | 8.0 | 5.0 | 5.0 | 5.0 | Blue |
| HTSFI 4012 | 2 X 4.00 | 12.0 | 23.1 | 8.8 | 11.1 | 4.2 | 3.8 | Grey |
| HTSFI 6014 | 2 X 6.00 | 14.0 | 26.1 | 9.5 | 12.1 | 5.3 | 4.9 | Yellow |
| HTSFI 10-14 | 2 X 10.00 | 14.0 | 27.0 | 13.0 | 12.0 | 7.0 | 7.0 | Red |
| HTSFI 16-14 | 2 X 16.00 | 14.0 | 31.3 | 19.0 | 17.0 | 8.7 | 8.3 | Blue |
