Aluminium Splice For LV & MV (Upto 33 KV) - HEX

Aluminium Splice For LV & MV (Upto 33 KV)

Home » Cable Terminal Ends » Connectors » Aluminium Splice For LV & MV (Upto 33 KV)

Cable Terminal Ends - Connectors

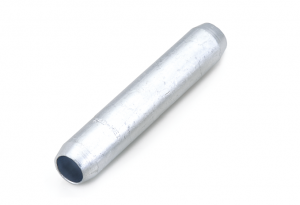

Aluminium Splice For LV & MV (Upto 33 KV)

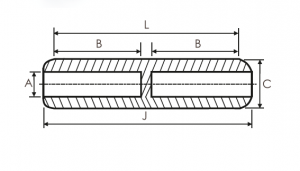

Cable mm2	Dimensions					Product Code
	A	C	L	B	J
16	5.5	16	76	43	90	HASC 16
25	6.5	16	76	43	90	HASC 25
35	8	16	80	43	92	HASC 35
50	9	20	93	53	110	HASC 50
70	11	20	96	53	110	HASC 70
95	12.5	20	98	53	110	HASC 95
120	13.7	25	117	66	135	HASC 120
150	15.5	25	118	66	135	HASC 150
185	17	32	122	70	146	HASC 185
240	19.5	32	124	70	146	HASC 240
300	23.3	36	185	100	208	HASC 300
400	26	36	190	100	208	HASC 400
500	29.1	47	190	107	222	HASC 500
630	33.5	47	197	107	222	HASC 630
800	37.5	60	232	127	274	HASC 800
1000	42	60	240	128	276	HASC 1000
