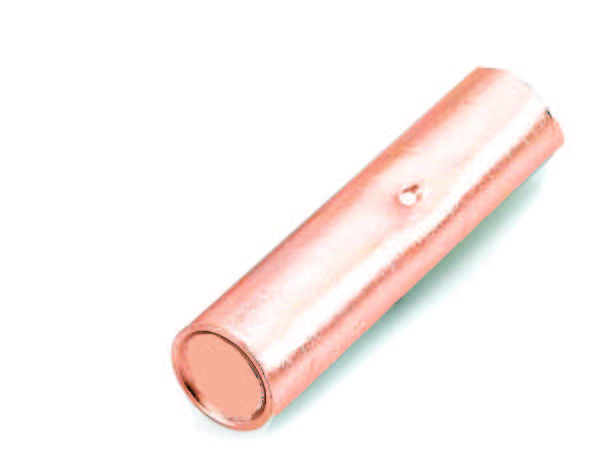

Tubular Compression Copper Connectors Long Barrel Up To 33KV

Home » Cable Terminal Ends » Connectors » Tubular Compression Copper Connectors Long Barrel Up To 33KV

Cable Terminal Ends - Connectors

Tubular Compression Copper Connectors Long Barrel Up To 33KVu200b

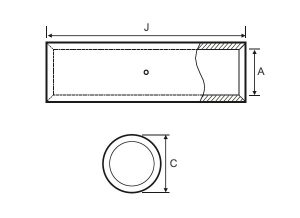

Cable mm2	Dimensions in mm2 +- 3%			Product Code
	A	C	J
25	7.0	10.0	50.0	HUTD-C - 25
35	8.2	12.5	60.0	HUTD-C - 35
50	10.0	14.5	65.0	HUTD-C - 50
70	11.5	16.5	65.0	HUTD-C - 70
95	13.5	19.0	90.0	HUTD-C - 95
120	15.5	21.0	90.0	HUTD-C - 120
150	17.0	23.5	105.0	HUTD-C - 150
185	19.0	23.5	105.0	HUTD-C - 185
240	21.5	29.0	125.0	HUTD-C - 240
300	24.0	32.0	125.0	HUTD-C - 300
400	27.5	38.5	160.0	HUTD-C - 400
500	31.0	42.0	160.0	HUTD-C - 500
630	34.5	44.0	180.0	HUTD-C - 630
800	40.0	52.0	200.0	HUTD-C - 800
1000	44.0	58.0	200.0	HUTD-C - 1000
