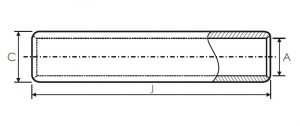

| Cable mm2 | Dimensions in mm +- 3% | Product Code | ||
| A | C | J | ||
| 16 | 5.5 | 16 | 90.5 | HTAC - 16 |
| 25 | 6.5 | 16 | 90.5 | HTAC - 25 |
| 35 | 8 | 16 | 90.5 | HTAC - 35 |
| 50 | 9 | 20 | 106.5 | HTAC - 50 |
| 70 | 11 | 20 | 106.5 | HTAC - 70 |
| 95 | 12.5 | 20 | 106.5 | HTAC - 95 |
| 120 | 13.7 | 25 | 133 | HTAC - 120 |
| 150 | 15.5 | 25 | 135 | HTAC - 150 |
| 185 | 17 | 32 | 143.5 | HTAC - 185 |
| 240 | 19.5 | 32 | 146 | HTAC - 240 |
| 300 | 22.5 | 34 | 144.5 | HTAC - 300 |
