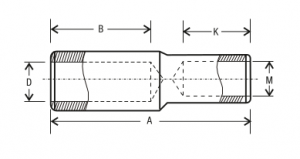

| Cable mm2 | Dimensions | Product Code | ||||
| A | B | D | K | M | ||
| 6 | 30 | 10 | 4 | 10 | 3 | HCRL 6-4 |
| 10 | 30 | 10 | 4.5 | 10 | 4 | HCRL 10-6 |
| 16 | 40 | 19 | 5.5 | 10 | 4 | HCRL 16-6 |
| 40 | 19 | 5.5 | 10 | 4.5 | HCRL 16-10 | |
| 25 | 40 | 21 | 7.5 | 10 | 4 | HCRL 25-6 |
| 40 | 21 | 7.5 | 10 | 4.5 | HCRL 25-10 | |
| 50 | 21 | 7.5 | 19 | 5.5 | HCRL 25-16 | |
| 35 | 40 | 21 | 8.5 | 10 | 4.5 | HCRL 35-10 |
| 55 | 21 | 8.5 | 19 | 5.5 | HCRL 35-16 | |
| 50 | 21 | 8.5 | 21 | 7.5 | HCRL 35-25 | |
| 50 | 45 | 22 | 9.5 | 10 | 4.5 | HCRL 50-10 |
| 55 | 22 | 9.5 | 19 | 5.5 | HCRL 50-16 | |
| 55 | 22 | 9.5 | 21 | 7.5 | HCRL 50-25 | |
| 60 | 22 | 9.5 | 21 | 7.5 | HCRL 50-35 | |
| 70 | 60 | 24 | 11.5 | 19 | 5.5 | HCRL 70-16 |
| 60 | 24 | 11.5 | 21 | 7.5 | HCRL 70-25 | |
| 65 | 24 | 11.5 | 21 | 8.5 | HCRL 70-35 | |
| 65 | 24 | 11.5 | 22 | 9.5 | HCRL 70-50 | |
| 95 | 65 | 27 | 13.5 | 21 | 7.5 | HCRL 95-25 |
| 65 | 27 | 13.5 | 21 | 8.5 | HCRL 95-25 | |
| 70 | 27 | 13.5 | 22 | 9.6 | HCRL 95-50 | |
| 70 | 27 | 13.5 | 24 | 11.5 | HCRL 95-70 | |
| 120 | 70 | 30 | 15.5 | 21 | 8.5 | HCRL 120-35 |
| 70 | 30 | 15.5 | 22 | 9.5 | HCRL 120-50 | |
| 75 | 30 | 15.5 | 24 | 11.5 | HCRL 120-70 | |
| 75 | 30 | 15.5 | 27 | 13.5 | HCRL 120-95 | |
| 150 | 70 | 30 | 16.5 | 22 | 9.5 | HCRL 150-50 |
| 75 | 30 | 16.5 | 24 | 11.5 | HCRL 150-70 | |
| 80 | 30 | 16.5 | 27 | 13.5 | HCRL 150-95 | |
| 80 | 30 | 16.5 | 30 | 15.5 | HCRL 150-120 | |
| 185 | 75 | 32 | 18.5 | 24 | 11.5 | HCRL 185-70 |
| 80 | 32 | 18.5 | 27 | 13.5 | HCRL 185-95 | |
| 85 | 32 | 18.5 | 30 | 15.5 | HCRL 185-120 | |
| 85 | 32 | 18.5 | 30 | 16.5 | HCRL 185-150 | |
| 240 | 85 | 38 | 21.5 | 27 | 13.5 | HCRL 240-95 |
| 90 | 38 | 21.5 | 30 | 15.5 | HCRL 240-120 | |
| 90 | 38 | 21.5 | 30 | 16.5 | HCRL 240-150 | |
| 95 | 38 | 21.5 | 32 | 18.5 | HCRL 240-185 | |
| 300 | 95 | 42 | 23.5 | 30 | 15.5 | HCRL 300-120 |
| 95 | 42 | 23.5 | 30 | 16.5 | HCRL 300-150 | |
| 100 | 42 | 23.5 | 32 | 18.5 | HCRL 300-185 | |
| 105 | 42 | 23.5 | 38 | 21.5 | HCRL 300-240 | |
| 400 | 110 | 55 | 26.5 | 30 | 16.5 | HCRL 400-150 |
| 110 | 55 | 26.5 | 32 | 18.5 | HCRL 400-185 | |
| 125 | 55 | 26.5 | 38 | 21.5 | HCRL 400-240 | |
| 125 | 55 | 26.5 | 42 | 23.5 | HCRL 400-300 | |
| 500 | 115 | 55 | 30 | 32 | 18.5 | HCRL 500-185 |
| 120 | 55 | 30 | 38 | 21.5 | HCRL 500-240 | |
| 125 | 55 | 30 | 42 | 23.5 | HCRL 500-300 | |
| 140 | 55 | 30 | 55 | 26.5 | HCRL 500-400 | |
| 630 | 120 | 56 | 34.5 | 38 | 21.5 | HCRL 630-240 |
| 125 | 56 | 34.5 | 42 | 23.5 | HCRL 630-300 | |
| 140 | 56 | 34.5 | 55 | 26.5 | HCRL 630-400 | |
| 0 | 6 | 34.5 | 5 | 30 | HCRL 630-500 |
