T-Connectors - HEX

T-Connectors

Home » Cable Terminal Ends » Connectors » T-Connectors

Cable Terminal Ends - Connectors

T-Connectors

Specifications

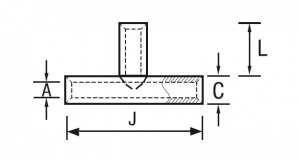

Cable mm2	Dimensions				Product Code
	A	C	J	L
1.5	1.8	3.3	30	12	HTCW 1.5
2.5	2.3	4.2	30	12	HTCW 2.5
4	3	5	30	12	HTCW 4
6	4	6	35	14	HTCW 6
10	4.5	7	35	14	HTCW 10
16	5.5	8.5	50	21	HTCW 16
25	7	10	55	23	HTCW 25
35	8.5	12	70	30	HTCW 35
50	10	14	80	34	HTCW 50
70	12	16.5	85	35	HTCW 70
95	13.5	18	90	36	HTCW 90
120	15	9.5	95	38	HTCW 120
150	16.5	21	110	44	HTCW 150
185	19	24	115	45	HTCW 185
240	21	26	130	52	HTCW 240
