Specifications

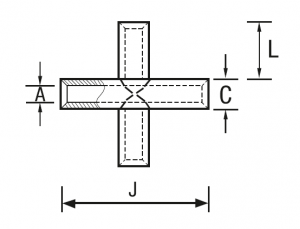

| Cable mm2 | Dimensions | Product Code | |||
| A | C | J | L | ||
| 1.5 | 1.8 | 3.3 | 30 | 12 | HCCW 1.5 |
| 2.5 | 2.3 | 4.2 | 30 | 12 | HCCW 2.5 |
| 4 | 3 | 5 | 30 | 12 | HCCW 4 |
| 6 | 4 | 6 | 35 | 14 | HCCW 6 |
| 10 | 4.5 | 7 | 35 | 14 | HCCW 10 |
| 16 | 5.5 | 8.5 | 50 | 21 | HCCW 16 |
| 25 | 7 | 10 | 55 | 23 | HCCW 25 |
| 35 | 8.5 | 12 | 70 | 30 | HCCW 35 |
| 50 | 10 | 14 | 80 | 34 | HCCW 50 |
| 70 | 12 | 16.5 | 85 | 35 | HCCW 70 |
| 95 | 13.5 | 18 | 90 | 36 | HCCW 90 |
| 120 | 15 | 9.5 | 95 | 38 | HCCW 120 |
| 150 | 16.5 | 21 | 110 | 44 | HCCW 150 |
| 185 | 19 | 24 | 115 | 45 | HCCW 185 |
| 240 | 21 | 26 | 130 | 52 | HCCW 240 |
