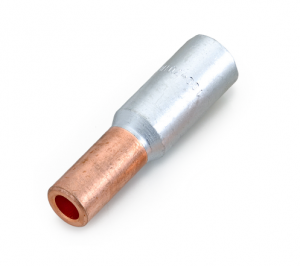

Aluminium - Copper Bi - Metal Connector / Splice

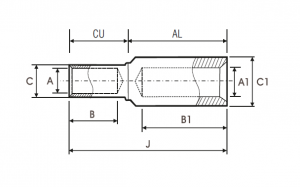

Cable Area mm2		Dimensions							Product Code
Al. Solid or stranded	Copper stranded	A	C	B	A1	C1	B1	J
16	16	5.6	12.2	29	5.5	16	43	88	HBS16 - 16
25	16	5.6	12.2	29	6.5	16	43	88	HBS 25 - 16
25	25	7	12.2	29	6.5	16	43	88	HBS 25 - 25
35	16	5.6	12.2	29	8	16	43	88	HBS 35 - 16
35	25	7	12.2	29	8	16	43	88	HBS 35 - 25
35	35	8	12.2	29	8	16	43	88	HBS 35 - 35
50	25	7	12.2	29	9	20	43	88	HBS 50 - 25
50	35	8	12.2	29	9	20	43	88	HBS 50 - 35
50	50	9.5	12.2	29	9	20	43	88	HBS 50 - 50
70	35	8	12.2	29	11	20	43	88	HBS 70 - 35
70	50	9.5	12.2	29	11	20	43	88	HBS 70 - 50
70	70	11	12.2	33	11	20	43	90	HBS 70 - 70
95	50	9.5	21	29	12.5	20	43	88	HBS 95 - 50
95	70	11	12.2	33	12.5	20	43	90	HBS 95 - 70
95	95	13	21	33	12.5	20	43	90	HBS 95 - 95
120	70	11	21	33	13.7	25	59	107	HBS120 - 70
120	95	13	21	33	13.7	25	59	107	HBS120 - 95
120	120	14.2	21	33	13.7	25	59	107	HBS 120 - 120
150	95	13	21	33	15.5	25	59	107	HBS150 - 95
150	120	14.2	21	33	15.5	25	59	107	HBS 150 - 120
150	150	16	21	33	15.5	25	59	107	HBS 150 - 150
185	120	14.2	21	33	17	32	59	107	HBS 185 - 120
185	150	16	21	33	17	32	59	107	HBS 185 - 150
185	185	18	26.2	43	17	32	59	120	HBS 185 - 185
240	150	16	21	33	19.5	32	59	107	HBS 240 - 150
240	185	18	26.2	43	19.5	32	59	120	HBS 240 - 185
240	240	20	26.2	43	19.5	32	59	120	HBS 240 - 240
