Compression Type Tinned Copper Connectors (As Per Din 46267) - HEX

Compression Type Tinned Copper Connectors (As Per Din 46267)

Home » Cable Terminal Ends » Connectors » Compression Type Tinned Copper Connectors (As Per Din 46267)

Cable Terminal Ends - Connectors

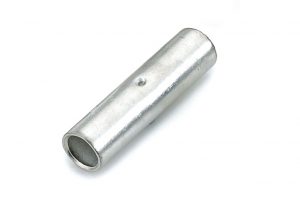

Compression Type Tinned Copper Connectors (As Per Din 46267)

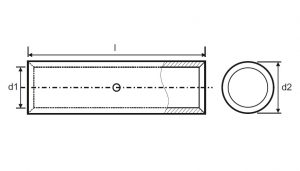

Cable mm2	Dimensions in mm			Product Code
	d1	d2	I
6	3.8	5.5	30	HDC - 6
10	4.5	6	30	HDC - 10
16	5.5	8.5	50	HDC - 16
25	7	10	50	HDC - 25
35	8.2	12.5	50	HDC - 35
50	10	14.5	56	HDC - 50
70	11.5	16.5	56	HDC - 70
95	13.5	19	70	HDC - 95
120	15.5	21	70	HDC - 120
150	17	23.5	80	HDC - 150
185	19	25.5	85	HDC - 185
240	21.5	29	90	HDC - 240
300	24.5	32	100	HDC - 300
400	27.5	38.5	150	HDC - 400
500	31	42	160	HDC - 500
625	34.5	44	160	HDC - 625
800	40	52	200	HDC - 800
1000	44	58	200	HDC - 1000
