| Cable mm2 | Dimensions | Product Code | |||

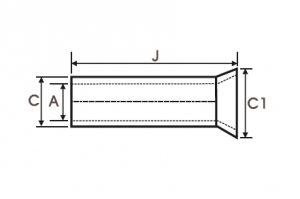

| A | C | C-1 | J | ||
| 0.5 | 1 | 1.4 | 2.1 | 6 | HSF 508 |
| 0.75 | 1.4 | 1.8 | 2.5 | 6 | HSF 509 |
| 1 | 1.6 | 2 | 2.7 | 6 | HSF510 |
| 1.6 | 2 | 2.7 | 10 | HSF511 | |
| 1.5 | 1.8 | 2.2 | 2.9 | 7 | HSF512 |
| 1.8 | 2.2 | 2.9 | 10 | HSF513 | |
| 2.5 | 2.3 | 3.7 | 2.9 | 7 | HSF514 |
| 2.3 | 2.7 | 3.5 | 12 | HSF515 | |
| 4 | 2.8 | 3.2 | 4 | 9 | HSF516 |
| 2.8 | 3.2 | 4 | 12 | HSF517 | |
| 6 | 3.7 | 4.1 | 4.8 | 10 | HSF518 |
| 3.7 | 4.1 | 4.8 | 12 | HSF519 | |
| 3.7 | 4.1 | 4.8 | 15 | HSF 520 | |
| 10 | 4.6 | 5 | 5.8 | 18 | HSF 521 |
| 4.6 | 5 | 5.8 | 18 | HSF 522 | |
| 4.6 | 5 | 5.8 | 18 | HSF 523 | |
| 16 | 5.9 | 6.3 | 7.5 | 12 | HSF 524 |
| 5.9 | 6.3 | 7.5 | 15 | HSF 525 | |
| 5.9 | 6.3 | 7.5 | 18 | HSF 526 | |
| 25 | 6.7 | 7.2 | 9 | 12 | HSF 527 |
| 7.3 | 7.9 | 9.5 | 12 | HSF 528 | |
| 7.3 | 7.9 | 9.5 | 15 | HSF 529 | |
| 7.3 | 7.9 | 9.5 | 18 | HSF 530 | |
| 7.3 | 7.9 | 9.5 | 20 | HSF 531 | |
| 35 | 8.3 | 8.9 | 11 | 15 | HSF 532 |
| 8.3 | 8.9 | 11 | 18 | HSF 533 | |
| 8.3 | 8.9 | 11 | 20 | HSF 534 | |
| 8.3 | 8.9 | 11 | 25 | HSF 535 | |
| 50 | 10.3 | 10.9 | 13 | 18 | HSF 536 |
| 10.3 | 10.9 | 13 | 22 | HSF 537 | |
| 10.3 | 10.9 | 13 | 25 | HSF 538 | |
| 10.3 | 10.9 | 13 | 30 | HSF 539 | |
| 70 | 12.5 | 13.3 | 15 | 22 | HSF 540 |
| 12.5 | 13.3 | 15 | 25 | HSF 541 | |
| 12.5 | 13.3 | 15 | 30 | HSF 542 | |
| 95 | 14.5 | 15.3 | 17 | 25 | HSF 543 |
| 14.5 | 15.3 | 17 | 30 | HSF 544 | |
| 14.5 | 15.3 | 17 | 32 | HSF 545 | |
| 120 | 16.5 | 17.5 | 19 | 30 | HSF 546 |
| 16.5 | 17.5 | 19 | 32 | HSF 547 | |
| 16.5 | 17.5 | 19 | 34 | HSF 548 |
