Al. Compression Cable Lugs (As Per Din 46329)

Home » Cable Terminal Ends » Lugs » Al. Compression Cable Lugs (As Per Din 46329)

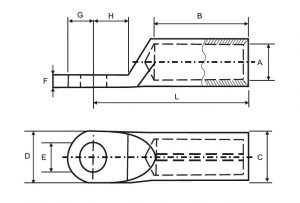

Cable mm2	Barrier design with oil stop. All Dimensions are in mm									Product Code
	E	A	C	D	F	B	H	G	L
25	9	6.8	12	25	4	30	15.5	12.5	50	HAFLD 25-8
	11	6.8	12	25	4	30	15.5	12.5	50	HAFLD 25-10
	13	6.8	12	25	4	30	15.5	12.5	50	HAFLD 25-12
35	9	8	14	25	4	42	15.5	12.5	62	HAFLD 35-8
	11	8	14	25	4	42	15.5	12.5	62	HAFLD 35-10
	13	8	14	25	4	42	15.5	12.5	62	HAFLD 35-12
50	9	9.8	16	25	5.5	42	15.5	12.5	62	HAFLD 50-8
	11	9.8	16	25	5.5	42	15.5	12.5	62	HAFLD 50-10
	13	9.8	16	25	5.5	42	15.5	12.5	62	HAFLD 50-12
70	9	11.2	18.5	25	5.5	52	15.5	12.5	72	HAFLD 70-8
	11	11.2	18.5	25	5.5	52	15.5	12.5	72	HAFLD 70-10
	13	11.2	18.5	25	5.5	52	15.5	12.5	72	HAFLD 70-12
95	11	13.2	22	25	6	56	15.5	12.5	75	HAFLD 95-10
	13	13.2	22	25	6	56	15.5	12.5	75	HAFLD 95-12
120	11	14.7	23	30	7.5	56	20	15	80	HAFLD 120-10
	13	14.7	23	30	7.5	56	20	15	80	HAFLD 120-12
	17	14.7	23	30	7.5	56	20	15	80	HAFLD 120-16
150	11	16.3	25	30	8	60	20	15	90	HAFLD 150-10
	13	16.3	25	30	8	60	20	15	90	HAFLD 150-12
	17	16.3	25	30	8	60	20	15	90	HAFLD 150-16
185	11	18.3	28.5	30	8	60	20	15	91	HAFLD 185-10
	13	18.3	28.5	30	8	60	20	15	91	HAFLD 185-12
	17	18.3	28.5	30	8	60	20	15	91	HAFLD 185-16
240	13	21	32	38	11	70	24	19	103	HAFLD 240-12
	17	21	32	38	11	70	24	19	103	HAFLD 240-16
	21	21	32	38	11	70	24	19	103	HAFLD 240-20
300	13	23.3	34	38	13	70	24	19	103	HAFLD 300-12
	17	23.3	34	38	13	70	24	19	103	HAFLD 300-16
	21	23.3	34	38	13	70	24	19	103	HAFLD 300-20
400	13	26	38.5	38	14	73	24	19	116	HAFLD 400-12
	17	26	38.5	38	14	73	24	19	116	HAFLD 400-16
	21	26	38.5	38	14	73	24	19	116	HAFLD 400-20
500	13	29	44	44	15	79	24	22	122	HAFLD 500-12
	17	29	44	44	15	79	24	22	122	HAFLD 500-16
	21	29	44	44	15	79	24	22	122	HAFLD 500-20
