Copper Flat Type Cable Terminal Ends - HEX

Copper Flat Type Cable Terminal Ends

Home » Cable Terminal Ends » Lugs » Copper Flat Type Cable Terminal Ends

Cable Terminal Ends - Lugs

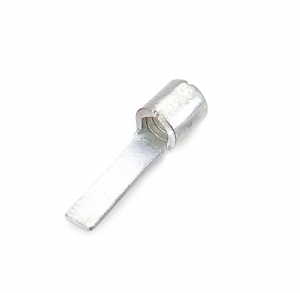

Copper Flat Type Cable Terminal Ends

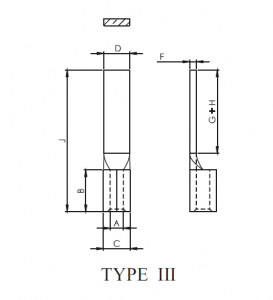

Cable mm2	Stud Hole E	Dimensions							Product Code
		A	C	D	F	B	G+H	J
1.5	-	1.6	3.2	3.1	0.8	5	10	17	HP 35
2.5	-	2.3	3.9	3.1	0.8	5	10	17	HP 2
4	-	3.6	5.6	5.1	1	6	10	20	HP 4
6	-	3.5	5.5	5	1	6.4	12.4	20.4	HP 15
