Copper Insulated Flat Type Cable Terminal Ends

Home » Cable Terminal Ends » Lugs » Copper Insulated Flat Type Cable Terminal Ends

Cable Terminal Ends - Lugs

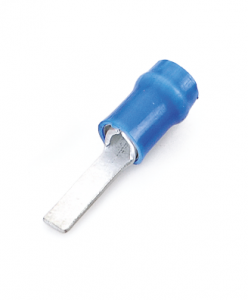

Copper Insulated Flat Type Cable Terminal Ends

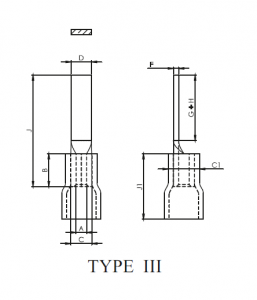

Cable mm2	Stud Hole E	Dimensions									Product Code
		A	C	D	F	G	B	G+H	C-1	J-1
1.5	-	1.6	3.2	3.1	0.8	5	10	17	4.8	10	HPI 40
2.5	-	2.3	3.9	3.1	0.8	5	10	17	5.5	10	HPI 19
4	-	3.6	5.6	5.1	1	6	10	20	7.1	14	HPI 21
