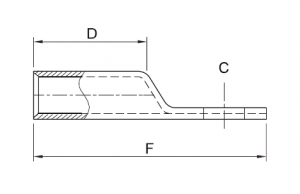

Copper Compression Lugs - Long Barrel


WIRE SIZE	BOLT SIZE	TANG WIDTH	Dimensions					O.D INCH.	I.D INCH.	Product Code
			C	D	E	F	T
8	-	0.41	0.25	0.81	0.59	1.52	0.41	0.28	0.17	HCRB 8L
6	0.25	0.41	0.28	1.13	0.5	1.81	0.41	0.3	0.2	HCRB 6L
4	0.25	0.5	0.28	1.13	0.5	1.81	0.5	0.34	0.25	HCRB 3L
4	0.31	0.5	0.34	1.13	0.5	1.81	0.5	0.34	0.25	HCRB 4L-516
3	0.25	0.53	0.28	1.13	0.5	1.81	0.53	0.38	0.28	HCRA 3L
2	0.31	0.59	0.34	1.25	0.75	2.22	0.59	0.42	0.31	HCRB 2L
2	0.25	0.59	0.28	1.25	0.75	2.22	0.59	0.42	0.31	HCRB2L 14
2	0.38	0.59	0.41	1.25	0.75	2.22	0.59	0.42	0.31	HCRB2L 38
1	0.31	0.69	0.34	1.38	0.75	2.38	0.69	0.47	0.36	HCRA 1L
1/0	0.31	0.75	0.34	1.38	0.75	2.38	0.75	0.52	0.6	HCRA 1/0L
2/0	0.38	0.81	0.41	1.5	0.88	2.66	0.81	0.56	0.44	HCRA 2/0L
3/0	0.5	0.91	0.53	1.5	1	2.91	0.91	0.61	0.48	HCRA 3/0L
4/0	0.5	1	0.53	1.63	1	2.97	1	0.69	0.53	HCRA 4/0L
250MCM	0.5	1.09	0.53	1.63	1.13	3.19	1.09	0.75	0.56	HCRA 250L
300MCM	0.5	1.19	0.53	2	1.13	3.56	1.19	0.81	0.66	HCRA 300L
350MCM	0.5	1.28	0.53	2	1.13	3.56	1.28	0.88	0.69	HCRA 350L
400MCM	0.63	1.38	0.69	2.13	1.5	4.25	1.38	15/16	0.75	HCRA 400L
500MCM	0.63	1.53	0.69	2.25	1.5	4.38	1.53	1.06	0.83	HCRA 500L
600MCM	0.63	1.69	0.69	2.25	1.5	4.47	1.69	1.19	0.92	HCRA 600L
*750MCM	0.63	1.91	0.66	2.88	1.94	5.47	1.91	1.31	1.03	*HCRA 750L
*1000MCM	0.63	2.19	0.66	3	2.13	6	2.19	1.5	1.17	*HCRA 1000L
