Tinned Copper Tubular Cable Lugs (Without Inspection Hole)

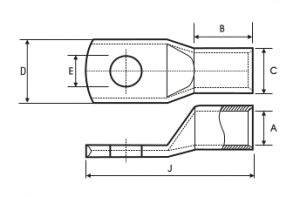

Cable mm2	Stud Hole E	Dimensions								Product Code
		A	C	D	B	K	G	H	J
2.5	5.3	2.4	4	10	8	3	5	6	22	HNL 2.5-5
4	5.3	3.1	4.8	10	8	3	5	6	22	HNL 4-5
6	5.3	3.8	5.5	10	9	3	5	6	23.5	HNL 6-5
	6.5	3.8	5.5	10	9	3	6	5	23.5	HNL 6-6
	8.5	3.8	5.5	12	9	3	7	8	28	HNL 6-8
	10.5	3.8	6	14.5	9	3	8	14	33	HNL 6-10
	13	3.8	6	17	9	3	12	13	36	HNL 6-12
10	5.3	4.5	6.2	10	10	3	6	7	26	HNL 10-5
	6.5	4.5	6.2	10.5	10	3	6	7	26.5	HNL 10-6
	8.5	4.5	6.2	12	10	3	7	9	28	HNL 10-8
	10.5	4.5	7	15	10	3	8	13	34	HNL 10-10
	13	4.5	7	17	10	3	12	13	40	HNL 10-12
16	5.3	5.4	7.1	10.5	13	4	6.5	7	31	HNL 16-5
	6.5	5.4	7.1	10.5	13	4	6.5	7	31	HNL 16-6
	8.5	5.4	7.1	12	13	4	7	9	32	HNL 16-8
	10.5	5.5	7.6	15	13	4	8	13	38	HNL 16-10
	13	5.5	7.6	17	13	4	12	13	42	HNL 16-12
25	5.3	6.8	8.8	13	13	5	6.5	7	32	HNL 25-5
	6.5	6.8	8.8	13	13	5	6.5	7	32	HNL 25-6
	8.5	6.8	8.8	13	13	5	6	9	32	HNL 25-8
	10.5	6.8	8.8	15	13	5	8	13	38	HNL 25-10
	13	6.8	9.5	18	13	5	11	14	42	HNL 25-12
	15	6.8	9.5	21	13	5	13	14	45	HNL 25-14
35	6.5	8.2	10.6	15	15	7	7	9	37.5	HNL 35-6
	8.5	8.2	10.6	15	15	7	9	11	42	HNL 35-8
	10.5	8.2	10.6	15	16	8	9	15	48	HNL 35-10
	13	8.2	10.6	17	15	8	14	14	53	HNL 35-12
	15	8.2	10.6	20	15	8	14	14	53	HNL 35-12
50	6.5	9.5	12.4	17.5	17	7	9	11	44	HNL 50-6
	8.5	9.5	12.4	17.5	17	7	9	11	44	HNL 50-8
	10.5	9.5	12.4	17.5	17	8	12	12	49	HNL 50-10
	13	9.5	12.4	20.5	17	8	14.5	14	53	HNL 50-12
	15	9.5	12.4	23	17	8	14.5	15	54	HNL 50-14
70	6.5	11.2	14.7	21	21	7	10	10	48	HNL 70-6
	8.5	11.2	14.7	21	21	7	10	10	48	HNL 70-8
	10.5	11.2	14.7	21	21	8	12	12	51.5	HNL 70-10
	13	11.2	14.7	21	21	8	13	13	55	HNL 70-12
	15	11.2	14.7	22	21	10	15	17	61	HNL 70-14
95	8.5	13.5	17.4	25	23	8	12	12	55	HNL 95-8
	10.5	13.5	17.4	25	24	8	12	12	55	HNL 95-10
	13	13.5	17.4	25	24	8	13	13	59	HNL 95-12
	15	13.5	17.4	25	24	10	15	17	67	HNL 95-14
	17	13.5	17.4	26	24	10	16	16	67	HNL 95-16
	21	13.5	17.4	28	24	10	16	17	68	HNL 95-20
120	8.5	15	19.4	28	24				65	HNL 120-8
	10.5	15	19.4	28	24				65	HNL 120-10
	13	15	19.4	28	24				65	HNL 120-12
	15	15	19.4	28	24				68	HNL 120-14
	17	15	19.4	28	24				68	HNL 120-16
	21	15	19.4	28	24				68	HNL 120-20
150	8.5	16.5	21.2	30	30				69	HNL 120-8
	10.5	16.5	21.2	30	30				69	HNL 150-10
	13	16.5	21.2	30	30				72	HNL 150-12
	15	16.5	21.2	30	30				72	HNL-150-14
	17	16.5	21.2	30	30				72	HNL 150-16
	21	16.5	21.2	30	30				72	HNL 150-20
185	10.5	19	23.5	34	30				82	HNL 185-10
	13	19	23.5	34	30				82	HNL 185-12
	15	19	23.5	34	30				82	HNL 185-14
	17	19	23.5	34	30				82	HNL 185-16
	21	19	23.5	34	30				89	HNL 185-20
240	10.5	21	26.5	38	35				94	HNL 240-10
	13	21	26.5	38	35				94	HNL 240-12
	15	21	26.5	38	35				94	HNL 240-14
	17	21	26.5	38	35				94	HNL 240-16
300	13	23.5	30	43	46				111	HNL-300-12
	15	23.5	30	43	46				111	HNL 300-14
	17	23.5	30	43	46				111	HNL 300-16
	21	23.5	30	43	46				111	HNL 300-20
400	17	27	36.5	50	49				114	HNL 400-16
	21	27	36.5	50	49				114	HNL 400-20
500	17	30	39	56	58				134	HNL 500-16
	21	30	39	56	58				134	HNL 500-20
630	17	35	41.5	61	70				144	HNL 630-16
	21	35	41.5	61	70				144	HNL 630-20
	10.5	35	41.5	61	70				144	HNL 630-4 E10
