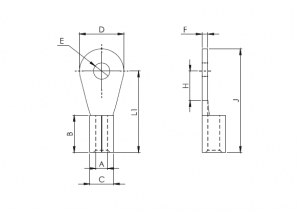

| Cable mm2 | Stud Hole E | Dimensions | Non Insulated | |||||||
| A | C | D | F | B | H | L-1 | J | Product Code | ||
| 50 | 8.2 | 10.5 | 14.1 | 18 | 1.8 | 16 | 12 | 34 | 43 | HR 7136 |
| 10.2 | 10.5 | 14.1 | 24 | 1.8 | 16 | 14 | 36 | 48 | HR 7138 | |
| 12.7 | 10.5 | 14.1 | 24 | 1.8 | 16 | 14 | 36 | 48 | HR 7042 | |
| 16.2 | 10.5 | 14.1 | 32 | 1.8 | 16 | 15 | 38 | 54 | HR 7139 | |
| 70 | 10.2 | 12 | 16 | 22 | 2 | 18 | 11 | 36 | 47 | HR 7140 |
| 12.7 | 12 | 16 | 22 | 2 | 18 | 11 | 36 | 47 | HR 7043 | |
| 16.2 | 12 | 16 | 28 | 2 | 18 | 16 | 40 | 54 | HR 7142 | |
| 95 | 10.2 | 13.5 | 18.1 | 24 | 2.3 | 20 | 12 | 38 | 50 | HR 7144 |
| 12.7 | 13.5 | 18.1 | 24 | 2.3 | 20 | 12 | 38 | 50 | HR 7044 | |
| 16.2 | 13.5 | 18.1 | 28 | 2.3 | 20 | 17 | 44 | 58 | HR 7145 | |
| 120 | 12.7 | 15 | 20.2 | 26 | 2.6 | 22 | 7 | 39 | 52 | HR 7146 |
| 20.3 | 15 | 20.2 | 40 | 2.6 | 22 | 20 | 52 | 72 | HR 7148 | |
| 150 | 16.2 | 16.5 | 23.7 | 40 | 3.6 | 24 | 20 | 54 | 74 | HR 7150 |
| 20.3 | 16.5 | 23.7 | 40 | 3.6 | 24 | 20 | 54 | 74 | HR 7046 |
