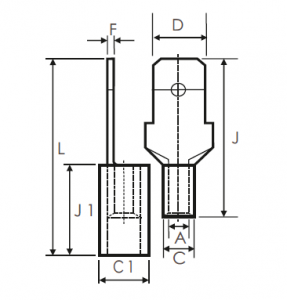

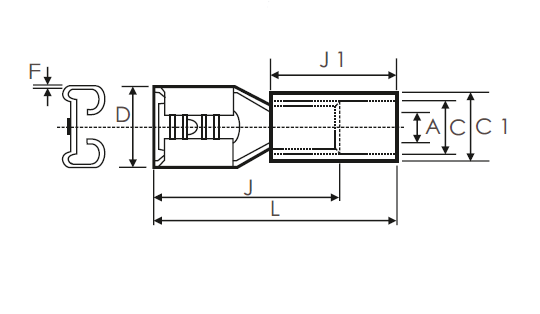

| Cable mm2 | Dimensions | Product Code | |||||||
| D | J | A | C | F | J-1 | L | C-1 | ||
| 1.5 | 6.6 | 16 | 2.4 | 3.2 | 0.4 | - | - | - | HSP 8351 |
| 1.5 | 6.6 | 16 | 2.4 | 3.2 | 0.4 | 10 | 21 | 4.8 | HSP 8351 (l) |
| 2.5 | 6.6 | 16 | 3.1 | 3.9 | 0.4 | - | - | - | HSP 8349 |
| 2.5 | 6.6 | 16 | 3.1 | 3.9 | 0.4 | 10 | 21 | 5.5 | HSP 8349 (l) |
| 4-6 | 6.6 | 19 | 3.8 | 5.5 | 0.8 | - | - | - | HSP 8451 |
| 4-6 | 6.6 | 19 | 3.8 | 5.5 | 0.8 | 14 | 26 | 7.1 | HSP 8451 (l) |
| 1.5 | 6.4 | 20 | 1.6 | 3.2 | 0.8 | - | - | - | HSP 8362 |
| 1.5 | 6.4 | 20 | 1.6 | 3.2 | 0.8 | 10 | 23 | 4.8 | HSP 8362 (l) |
| 2.5 | 6.4 | 20 | 2.3 | 3.9 | 0.8 | - | - | - | HSP 8363 |
| 2.5 | 6.4 | 20 | 2.3 | 3.9 | 0.8 | 10 | 23 | 5.5 | HSP 8363 (l) |
| 4-6 | 6.4 | 20 | 3.8 | 5.5 | 0.8 | - | - | - | HSP 8463 |
| 4-6 | 6.4 | 20 | 3.8 | 5.5 | 0.8 | 14 | 25 | 7.1 | HSP 8463 (l) |
