Aluminium 3 - Core Sector Cable Lugs

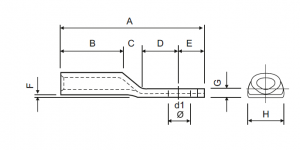

Cable mm2	Stud	Dimensions									Product Code
		A	B	C	D	E	F	G	H	d1
25	8							4.1	15.2	8.4	HAL3-8-25
	10	65	25	8	17	12	1			10.4	HAL3-10-25
	12							2.9	21	12.5	HAL3--2-25
35	8							4.4	17.6	8.4	HAL3-8-35
	10	68	30	8	17	12	1			10.4	HAL3--0-35
	12							3.6	21	12.5	HAL3-12-35
50	10							4.5	20.3	8.4	HAL3-10-50
	12	71	32	10	17	12	1			10.4	HAL3-12-50
	16							2.9	21	12.5	HAL3-16-50
70	10							5	23.2	10.4	HAL3-10-70
	12	76	35.5	11	17	12	1			12.5	HAL3-12-70
	16							4.6	26	16.5	HAL3-16-70
95	10									10.4	HAL3-10-95
	12	82	39	14	17	12	1.5	5.7	27.7	12.5	HALS-12-95
	16									16.5	HALS-16-95
120	12									10.4	HAL3-12-120
	16	88	44	15	17	12	1.5	6.5	31	12.5	HAL3-16-120
	20									16.5	HAL3-20-120
150	12									12.4	HAL3-12-150
	16	100	47.5	16	20.5	16	1.5	7.2	34.7	16.5	HAL3-16-150
	20									20.5	HAL3-20-150
185	12									12.4	HAL3-12-185
	16	106	47.5	16	20.5	16	1.5	7.2	34.7	16.5	HAL3-16-185
	20									20.5	HAL3-20-185
240	20	116	553	20.5	22	18	2	5.7		20.5	HAL3-0-240
300	20	128.5	60.5	23	25	20	2	9.7	49.2	20.5	HAL3-0-300
