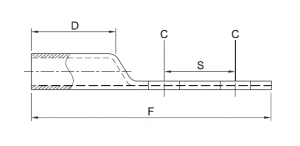

| Wire Size | Bolt Size | Color Code | Dimensions | Product Code | |
| D | F | ||||
| 2 | 5/16(2) | Brown | 1 – 1/4 | 3 | HCRB 2L2 |
| 2 | 1/2(2) | Brown | 1 – 1/4 | 4 – 13/16 | HCRC 2L2 |
| 2 | #10(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-10-34 |
| 2 | 1/4(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-14-58 |
| 2 | 1/4(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-14-34 |
| 2 | 1/4(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-14-1 |
| 2 | 5/16(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-516-58 |
| 2 | 5/16(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-516-34 |
| 2 | 5/16(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-516-1 |
| 2 | 3/8(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-38-58 |
| 2 | 3/8(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-38-34 |
| 2 | 3/8(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-38-78 |
| 2 | 3/8(2) | Brown | 1 – 1/4 | 3 – 5/16 | HCRA 2L2-38-1 |
| 2 | 4 – 1/2 | Brown | 1 – 1/4 | 4 – 1/2 | HCRB 2L2-12-134 |
| 1 | 3 – 7/16 | Green | 1 – 3/8 | 3 – 7/16 | HCRA 1L2 |
| 1 | 3 – 7/16 | Green | 1 – 3/8 | 3 – 7/16 | HCRA 1L2-14-58 |
| 1 | 4 – 3/4 | Green | 1 – 3/8 | 4 – 3/4 | HCRC 1L2 |
| 1/0 | 5/16(2) | Pink | 1 – 3/8 | 3 – 7/16 | HCRA 1/0L2 |
| 1/0 | 1/2(2) | Pink | 1 – 3/8 | 4 – 29/32 | HCRC 1/0L2 |
| 8 | 5/16(2) | Red | 13/16 | 2.19 | HCRA 8L2 |
| 8 | 1/2(2) | Red | 13/16 | 2.19 | HCRB 8L2 |
| 6 | 1/4(2) | Blue | 1 – 1/8 | - | HCRB 6L2 |
| 6 | #10(2) | Blue | 1 – 1/8 | - | HCRA 6L2-10-34 |
| 6 | 1/4(2) | Blue | 1 – 1/8 | - | HCRB 6L2-14-58 |
| 6 | 1/4(2) | Blue | 1 – 1/8 | - | HCRA 6L2-14-34 |
| 6 | 1/4(2) | Blue | 1 – 1/8 | - | HCRA 6L2-14-1 |
| 6 | 5/16(2) | Blue | 1 – 1/8 | - | HCRB 6L2-516-1 |
| 6 | 3/8(2) | Blue | 1 – 1/8 | - | HCRB 6L2-38-34 |
| 6 | 3/8(2) | Blue | 1 – 1/8 | - | HCRB 6L2-38-78 |
| 6 | 3/8(2) | Blue | 1 – 1/8 | - | HCRB 6L2-38-1 |
| 4 | 1/4(2) | Blue | 1 – 1/8 | - | HCRB 4L2 |
| 4 | 1/2(2) | Gray | 1 – 1/8 | - | HCRC 4L2 |
| 4 | #10(2) | Gray | 1 – 1/8 | - | HCRA 4L2-10-34 |
| 4 | 1/4(2) | Gray | 1 – 1/8 | - | HCRB 4L2-14-58 |
| 4 | 1/4(2) | Gray | 1 – 1/8 | - | HCRA 4L2-14-34 |
| 4 | 1/4(2) | Gray | 1 – 1/8 | - | HCRA 4L2-14-1 |
| 4 | 5/16(2) | Gray | 1 – 1/8 | - | HCRA 4L2-516-58 |
| 4 | 5/16(2) | Gray | 1 – 1/8 | - | HCRA 4L2-516-34 |
| 4 | 5/16(2) | Gray | 1 – 1/8 | - | HCRA 4L2-516-1 |
| 4 | 3/8(2) | Gray | 1 – 1/8 | - | HCRB 4L2-38-34 |
| 4 | 3/8(2) | Gray | 1 – 1/8 | - | HCRB 4L2-38-1 |
| 4 | 1/2(2) | Gray | 1 – 1/8 | - | HCRB 4L2-12-134 |
| 3 | 1/4(2) | White | 1 – 1/8 | - | HCRA 3L2 |
| 3 | 3/8(2) | White | 1 – 1/8 | - | HCRA 3L2 |
| 2/0 | 1/2(2) | Black | 1 – 1/2 | - | HCRA 2/0L2 |
| 3/0 | 1/2(2) | Orange | 1 – 1/2 | - | HCRB 3/0L2 |
| 4/0 | 1/2(2) | Purple | 1 – 5/8 | - | HCRB 4/0L2 |
| 250MCM | 1/2(2) | Yellow | 1 – 5/8 | - | HCRA 250L2 |
| 250MCM | 3/8(2) | Yellow | 1 – 5/8 | - | HCRA 250L2-38-1 |
| 250MCM | 3/8(2) | Yellow | 1 – 5/8 | - | HCRA 250L2-38-134 |
| 300MCM | 1/2(2) | White | 2 | - | HCRA 300L2 |
| 350MCM | 1/2(2) | Red | 2 | - | HCRA 350L2 |
| 400MCM | 1/2(2) | Blue | 2 – 1/8 | - | HCRA 400L2 |
| 500MCM | 1/2(2) | Brown | 2 – 1/4 | - | HCRA 500L2 |
| 600MCM | 1/2(2) | Green | 2 – 1/4 | - | HCRA 600L2 |
| *700MCM | 1/2(2) | Pink | 2 – 1/4 | - | HCRA 700L2 |
| *750MCM | 1/2(2) | Black | 2 – 7/8 | - | HCRA 750L2 |
| *1000MCM | 1/2(2) | White | 3 | - | HCRA 1000L2 |
