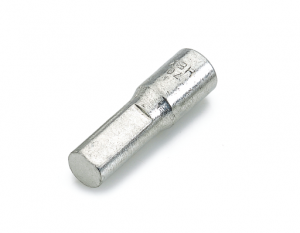

Copper Reducer Pin Type Terminal Ends

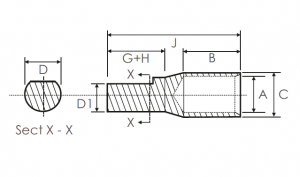

Cable mm2	Dimensions							Product Code
	A	C	D	D1	B	G+H	J
2.5	2.5	4.7	3.8	3.3	6	10	20	HPC7
4	2.8	4.7	3.8	3.3	6	10	20	HPC- 16
6	3.1	4.7	3.8	3.3	6	10	20	HPC18
10	3.8	5.5	3.8	3.3	9	10	23	HPC20
16	5.3	7.1	3.8	3.3	12	13	30	HPC2
25	7	9	6	5.5	12	15	32	HPC25
25	7	9	7.5	6.5	12	20	37	HPC3
35	8	10	7.5	6.5	12	20	37	HPC4
50	9.2	11.2	7.5	6.5	16	20	41	HPC26
70	11.5	13.8	7.5	6.5	18	20	43	HPC27
70	11.5	13.8	11.5	10.5	18	25	48	HPC6
70	11.5	13.8	11.5	10.5	18	32	55	HPC28
95	12.8	15.6	11.5	10.5	20	25	51	HPC29
95	12.8	15.6	7.5	6.5	20	22	48	HPC31
95	12.8	15.6	15.6	14	20	27	53	HPC8
120	14.8	17.8	11.5	10.5	22	25	53	HPC32
120	14.8	17.8	7.5	6.5	22	22	50	HPC34
120	14.8	17.8	11.5	10.5	22	32	60	HPC35
150	16	19.6	11.5	10.5	26	32	64	HPC37
185	18	22	11.5	10.5	32	32	70	HPC38
240	22	26	16	15	38	42	88	HPC44
300	24	28.7	16	15	42	42	92	HPC45
400	28	33.2	15.6	14	46	32	90	HPC48
