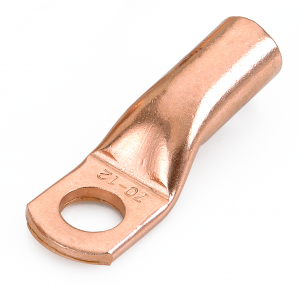

Tubular Compression Cable Lugs (As Per DIN 46235)

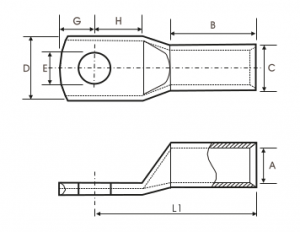

Cable mm2	Stud Hole E	Dimensions							Product Code
		D	A	B	C	G	H	L-1
6	5.3	8.5	3.8	10	5.5	6.5	7.5	24	HUTD 6 - 5
10	6.5	8.5	4.5	10	6	7	8.5	27.5	HUTD10 - 6
16	6.5	12	5.5	20	8.5	7.5	8	35	HUTD16 - 6
	8.4	12	5.5	20	8.5	10	10	35	HUTD16 - 8
	10.5	17	5.5	20	8.5	12	12	37	HUTD 16 - 10
	13	19	5.5	20	8.5	13	13	37	HUTD 16 - 12
25	6.5	15	7	20	10	7.5	8	39	HUTD 25 - 6
	8.4	15	7	20	10	10	10	39	HUTD 25 - 8
	10.5	17	7	20	10	12	12	39	HUTD 25 - 10
	13	19	7	20	10	13	13	39	HUTD 25 - 12
35	8.4	17	8.2	20	12.5	7.5	8	42	HUTD 35 - 8
	10.5	19	8.2	20	12.5	10	10	42	HUTD 35 - 10
	13	21	8.2	20	12.5	12	12	42	HUTD 35 - 12
50	8.4	22	10	28	14.5	10	10	51	HUTD 50 - 8
	10.5	22	10	28	14.5	12	12	51	HUTD 50 - 10
	13	23	10	28	14.5	13	13	51	HUTD 50 - 12
	17	28	10	28	14.5	14.5	14.5	51	HUTD 50 - 16
70	10.5	24	11.5	28	16.5	10	10	54	HUTD 70 - 10
	13	24	11.5	28	16.5	12	12	54	HUTD 70 - 12
	17	32	11.5	28	16.5	13	13	54	HUTD 70 - 16
	21	32	11.5	28	16.5	14.5	14.5	54	HUTD 70 - 20
95	10.5	28	13.5	35	19	12	12	64	HUTD 95 - 10
	13	28	13.5	35	19	12	12	64	HUTD 95 - 12
	17	32	13.5	35	19	13	13	67	HUTD 95 - 16
	21	34	13.5	35	19	14.5	14.5	67	HUTD 95 - 20
120	10.5	32	15.5	35	21	15	16	68	HUTD 120 -10
	13	32	15.5	35	21	16	17	68	HUTD 120 -12
	17	32	15.5	35	21	18	19	69	HUTD 120 -16
	21	38	15.5	35	21	19	20	69	HUTD 120 -20
150	10.5	34	17	35	23.5	15	16	77	HUTD 150 -10
	13	34	17	35	23.5	16	17	77	HUTD 150 -12
	17	34	17	35	23.5	19	20	77	HUTD 150 -16
	21	40	17	35	23.5	19	20	77	HUTD 150 -20
185	10.5	37	19	40	25.5	15	16	81	HUTD 185 -10
	13	37	19	40	25.5	16	17	81	HUTD 185 -12
	17	37	19	40	25.5	19	20	81	HUTD 185 -16
	21	40	19	40	25.5	19	20	81	HUTD 185 -20
240	10.5	42	21.5	40	29	16	17	91	HUTD 240 -10
	13	42	21.5	40	29	19	20	91	HUTD 240 -12
	17	42	21.5	40	29	19	20	91	HUTD 240 -16
	21	46	21.5	40	29	21	22	91	HUTD 240 -20
300	13	48	24	50	32	19	22	100	HUTD 300 -12
	17	48	24	50	32	19	22	100	HUTD 300 -16
	21	48	24	50	32	22	22	100	HUTD 300 -20
400	17	55	27.5	70	38.5	25	25	115	HUTD 400 -16
	21	55	27.5	70	38.5	25	25	115	HUTD 400 -20
500	21	60	31	70	42	25	25	127	HUTD 500 -20
630	21	60	34.5	80	44	25	25	135	HUTD 630 -20
800	21	70	40	100	52	30	30	165	HUTD 800 -20
1000	21	80	44	100	58	30	30	165	HUTD 1000-20
