Mechanical Cable Lugs - Bolted With 2 Screws And 4 Screws

Home » Cable Terminal Ends » Lugs » Mechanical Cable Lugs – Bolted With 2 Screws And 4 Screws

Cable Terminal Ends - Lugs

Mechanical Cable Lugs - Bolted With 2 Screws And 4 Screws

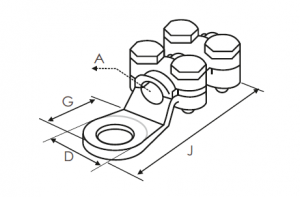

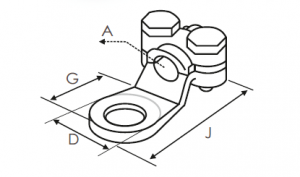

Cable mm2	Dimensions						Product Code
	A	G	D	J	Screw	Type
10	4	6	15	32.5	M - 5	I	H2B 10
16	5.1	8.5	17	37	M - 5	I	H2B 16
25	6.3	8.5	18.75	42	M - 5	I	H2B 25
35	7.5	10.5	21.5	4	M - 5	I	H2B 35
50	9.5	10.5	23	56.5	M - 6	II	H4B 50
75	11	13.25	26	61	M - 6	II	H4B 75
100	13	14.3	29	65	M - 6	II	H4B 100
120	14	14.8	32	71	M - 6	II	H4B 120
170	16	16	33	81	M - 8	II	H4B 170
200	17	17	35	85	M - 8	II	H4B 200
250	18	17	38	87.5	M - 8	II	H4B 250
300	21	19.8	45	118	M - 10	II	H4B 300
400 / 500	25.5	22	53	132	M - 10	II	H4B 400/500
700	34	22	60	150	M - 10	II	H4B 700
