Compression Type Tinned Copper Cable Lugs (As Per Din 46235)

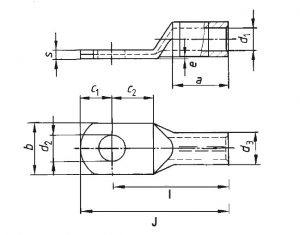

Cable mm2	Stud Hole d2	Dimensions									Product Code
		d1	d3	b	s	c1	c2	a	I	J
6	5.3	3.8	5.5	8.5	1.5	9	6	10	24	33	HD 6-5
6	6.4	3.8	5.5	8.5	1.5	10.5	8	10	24	34.5	HD 6-6
10	5.3	4.5	6	9	1.5	9	6	10	27	36	HD 10-5
10	5.3	4.5	6	9	1.5	9	6	10	27	36	HD 10-5
16	6.4	5.5	8.5	13	2.5	10.5	8	20	36	46.5	HD 16-6
16	8.4	5.5	8.5	13	2.5	13	10	20	36	49	HD 16-8
16	10.5	5.5	8.5	17	2.5	15	12	20	36	51	HD 16-10
25	6.4	7	10	14	3	10.5	8	20	38	48.5	HD 25-6
25	8.4	7	10	15	3	13	10	20	38	51	HD 25-8
25	10.5	7	10	17	3	15	12	20	38	54	HD 25-10
25	13	7	10	19	3	16	13	20	38	54	HD 25-12
35	8.4	8.2	12.5	17	2.5	13	10	20	42	55	HD 35-8
35	10.5	8.2	12.5	19	2.5	15	12	20	42	57	HD 35-10
35	13	8.2	12.5	21	2.5	16	13	20	42	58	HD 35-12
50	8.4	10	14.5	20	4	13	10	28	52	65	HD 50-8
50	10.5	10	14.5	22	4	15	12	28	52	67	HD 50-10
50	13	10	14.5	24	4	16	13	28	52	68	HD 50-12
50	17	10	14.5	28	4	19	16	28	52	71	HD 50-16
70	8.4	11.5	16.5	24	4.5	13	10	28	55	68	HD 70-8
70	10.5	11.5	16.5	24	4.5	15	12	28	55	70	HD 70-10
70	13	11.5	16.5	24	4.5	16	13	28	55	71	HD 70-12
70	17	11.5	16.5	30	4.5	19	16	28	55	74	HD 70-16
95	10.5	13.5	19	28	5	15	12	35	65	80	HD 95-10
95	13	13.5	19	28	5	16	13	35	65	81	HD 95-12
95	17	13.5	19	32	5	19	16	35	65	84	HD 95-16
120	10.5	15.5	21	32	5.5	15	12	35	70	85	HD 120-10
120	13	15.5	21	32	5.5	16	13	35	70	86	HD 120-12
120	17	15.5	21	32	5.5	19	16	35	70	89	HD 120-16
120	21	15.5	21	38	5.5	22	20	35	70	92	HD 120-20
150	10.5	17	23.5	34	6	15	12	35	78	93	HD 150-10
150	13	17	23.5	34	6	16	13	35	78	94	HD 150-12
150	17	17	23.5	34	6	19	16	35	78	97	HD 150-16
150	21	17	23.5	40	6	22	20	35	78	100	HD 150-20
185	10.5	19	25.5	37	6	15	12	40	82	97	HD 185-10
185	13	19	25.5	37	6	16	13	40	82	98	HD 185-12
185	17	19	25.5	37	6	19	16	40	82	101	HD 185-16
185	21	19	25.5	40	6	22	20	40	82	104	HD 185-20
240	13	21.5	29	42	6.5	16	13	40	92	108	HD 240-12
240	17	21.5	29	42	6.5	19	16	40	92	111	HD 240-16
240	21	21.5	29	45	6.5	22	20	40	92	114	HD 240-20
300	17	24.5	32	48	7	19	16	50	100	119	HD 300-16
300	21	24.5	32	48	7	22	20	50	100	122	HD 300-20
400	17	27.5	38.5	55	10	25	16	70	115	140	HD 400-16
400	21	27.5	38.5	55	10	25	20	70	115	140	HD 400-20
500	21	31	42	60	10	25	20	70	125	150	HD 500-20
625	21	34.5	44	60	10	25	20	80	135	160	HD 625-20
800	21	40	52	75	12	25	20	100	165	190	HD 800-20
1000	21	44	58	85	14	25	20	100	165	190	HD 1000-20
