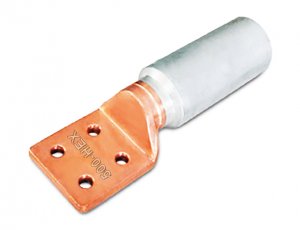

Aluminium - Copper Bi-Metal Terminals (With Copper Palms)

Crimping Test Applied Force :

Construction : Forged circular copper palm is friction welded to an EC grade
Aluminium circular barrel thus achieving to test possible transition

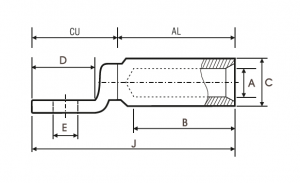

Cable mm2	Dimensions						Product Code
	A	C	D	E	J	B
16	5.5	16	20	10.3	79	43	HBT 16-10
25	6.5	16	20	10.3	79	43	HBT25-10
35	8	16	20	10.3	79	43	HBT 35-10
50	9	20	25	12.8	85	43	HBT 50-12
70	11	20	25	12.8	85	43	HBT 70-12
95	12.5	20	25	12.8	85	43	HBT 95-12
120	13.7	25	30	12.8	108	59	HBT 120-12
150	15.5	25	30	12.8	108	59	HBT 150-12
185	17	32	35	14.5	115	59	HBT 185-14
240	19.5	32	35	14.5	115	59	HBT 240-14
300	23.3	40	36	16.5	137	85	HBT 300-16
400	26	40	36	16.5	153.5	85	HBT 400-16
500*	29.1	47	60x60	4Ø 9	196	95	HBT 500-16
630*	33.5	47	60x60	4Ø 9	196	95	HBT 630 4X9
800*	37.5	53	80x80	4Ø 9	232	100	HBT 800 4X9
1000*	42	60	80x80	4Ø 9	256	126	HBT 1000 4X9
1300*	46.5	65	80x80	4Ø 11	267	136	HBT 1300 4X 11
