| Wire Size | Bolt Size | Dimensions in Inch | Colour Code | Product Code | ||||

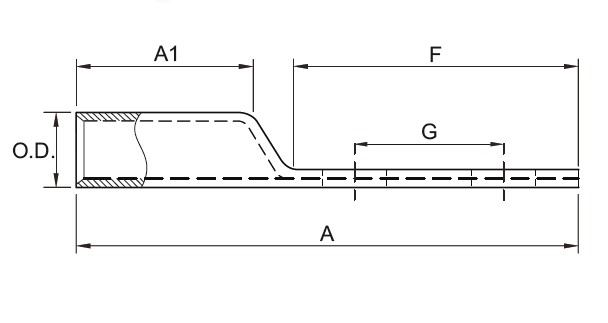

| O.D. | A1 | A | F | G | ||||
| 8 | #10 | 0.281 | 0.440 | 1.820 | 1.260 | 0.630 | Red | HS-A-8 L2 |
| 6 | 1/4" | 0.297 | 0.710 | 2.090 | 1.260 | 0.630 | Blue | HS-A-6 L2 |
| 4 | 1/4" | 0.344 | 0.710 | 2.090 | 1.260 | 0.630 | Gray | HS-A-4 L2 |
| 2 | 5/16" | 0.422 | 0.830 | 2.620 | 1.610 | 0.750 | Brown | HS-A-2 L2 |
| 1 | 1/4" | 0.469 | 0.830 | 2.280 | 1.260 | 0.630 | Green | HS-A-1 L2 |
| 1/0 | 5/16" | 0.517 | 0.830 | 2.874 | 1.810 | 0.984 | Pink | HS-A-1/0 L2 |
| 1/0 | 3/8" | 0.517 | 0.830 | 2.830 | 1.810 | 1.000 | Pink | HS-A-1/0-38 L2 |
| 2/0 | 3/8" | 0.563 | 0.940 | 2.990 | 1.850 | 1.000 | Black | HS-A-2/0 L2 |
| 2/0 | 1/2" | 0.563 | 0.940 | 4.170 | 2.990 | 1.750 | Black | HS-A-2/0-12 L2 |
| 3/0 | 1/2" | 0.609 | 0.984 | 4.290 | 2.990 | 1.750 | Orange | HS-A-3/0 L2 |
| 4/0 | 1/2" | 0.688 | 1.142 | 4.290 | 3.031 | 1.750 | Purple | HS-A-4/0 L2 |
| 4/0 | 3/8" | 0.688 | 1.142 | 4.449 | 3.031 | 1.752 | Purple | HS-A-4/0-38 L2 |
| 250 MCM | 1/2" | 0.750 | 1.060 | 4.410 | 2.990 | 1.750 | Yellow | HS-A-250 L2 |
| 300 MCM | 1/2" | 0.813 | 1.060 | 4.410 | 2.990 | 1.750 | White | HS-A-300 L2 |
| 350 MCM | 1/2" | 0.875 | 1.100 | 4.530 | 2.990 | 1.750 | Red | HS-A-350 L2 |
| 400 MCM | 1/2" | 0.937 | 1.180 | 4.690 | 2.990 | 1.750 | Blue | HS-A-400 L2 |
| 500 MCM | 1/2" | 1.063 | 1.380 | 4.880 | 2.990 | 1.750 | Brown | HS-A-500 L2 |
| 600 MCM | 3/8" | 1.188 | 1.500 | 4.960 | 2.990 | 1.750 | Green | HS-A-600 L2 |
| 600 MCM | 1/2" | 1.188 | 1.500 | 5.040 | 2.990 | 1.750 | Green | HS-A-600-12 L2 |
| *750 MCM | 1/2" | 1.850 | 5.510 | 1.750 | Black | HS-A-750 L2 |
