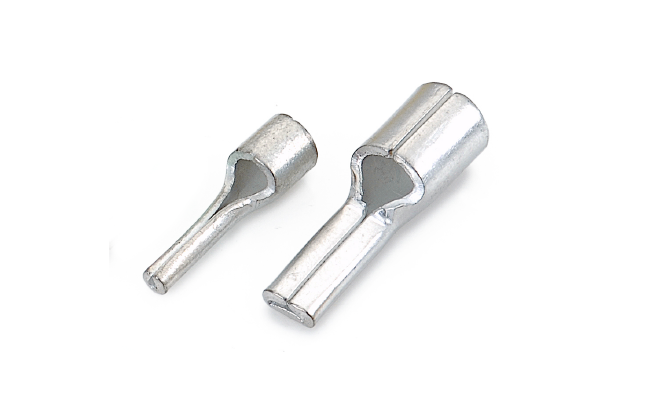

PIN TYPE TERMINAL ENDS: Three types are available in this type of terminal ends i.e. Round, Regular, and Flat. They are mainly used for control cables, terminal station, flexible core, or for smaller sizes of cable. Pin type terminal ends are generally available for crimping type of connections which are made out of high conductivity copper.

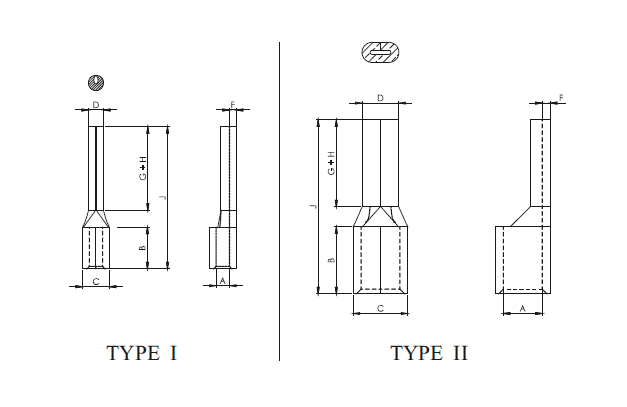

| Cable mm2 | Stud Hole E | Dimensions | TYPE | Product Code | ||||||
| A | C | D | F | B | G+H | J | ||||
| 1.5 | - | 1.6 | 3.2 | 1.9 | 0.8 | 5 | 10 | 17 | I | HP 9 |
| 2.5 | - | 2.3 | 3.9 | 1.9 | 0.8 | 5 | 10 | 17 | I | HP 1 |
| 4 | - | 2.9 | 4.9 | 2.7 | 1 | 6 | 10 | 20 | I | HP 3 |
| 6 | - | 3.6 | 5.6 | 2.7 | 1 | 6 | 10 | 20 | I | HP 5 |
| 6 | - | 4 | 6 | 2.7 | 1 | 6 | 10 | 20 | I | HP 6 |
| 10 | 2.4 | 4.5 | 6.7 | 4.3 | 1.1 | 8 | 12 | 22 | II | HP 7 |
| 16 | 2.6 | 5.8 | 8.2 | 5.5 | 1.2 | 10 | 13 | 26 | II | HP 8 |
| 25 | 3.8 | 7.5 | 11.1 | 7.2 | 1.8 | 11 | 15 | 33 | II | HP10 |
| 35 | 3.8 | 9 | 12.6 | 8.2 | 1.8 | 12 | 15 | 33 | II | HP 11 |
| 50 | 3.8 | 10.5 | 14.1 | 9 | 1.8 | 16 | 17 | 41 | II | HP 12 |
| 70 | 4.1 | 12 | 16 | 10 | 2 | 16 | 16 | 46 | II | HP 13 |
| 95 | 4.8 | 13.5 | 18.1 | 10 | 2.3 | 20 | 20 | 51 | II | HP 14 |
