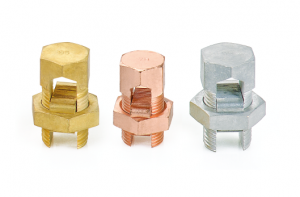

We offer a wide range of line taps to meet the material and dimensional specifications laid by different international standards. Brass line taps are made with high tensile brass as per BS 2874 – CZ 112. Threads are formed by rolling process giving the nut extra clamping force. Pressure pads are made from extruded bars (not cast), preventing the pads from cracking. Brass line taps are manufactured in passivated natural brass with electro tinned finish. These are also supplied in high conductivity copper.
Specifications:

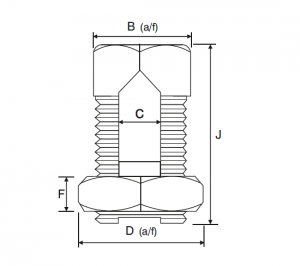

| PROD. CODE | Size | J | C | B a/f | D a/f | F |
| HSBC 6 | 6 | 19.85 | 4 | 12.7 | 13.35 | 4.8 |
| HSBC 10 | 10 | 26.75 | 4.7 | 12.7 | 19 | 5.6 |
| HSBC 16 | 16 | 26 | 5.7 | 12.7 | 19 | 5.6 |
| HSBC 25 | 25 | 28 | 7.3 | 16 | 19 | 5.6 |
| HSBC 35 | 35 | 35 | 7.8 | 18.5 | 24 | 6.35 |
| HSBC 50 | 50 | 42 | 9.7 | 24.1 | 27.2 | 8.65 |
| HSBC 70 | 70 | 44 | 11.5 | 24.1 | 27.2 | 8.65 |
| HSBC 95 | 95 | 50 | 14.4 | 26.5 | 35.4 | 9.4 |
| HSBC 120 | 120 | 57.5 | 16.2 | 30 | 35.4 | 12 |
| HSBC 150 | 120 | 57.5 | 16.2 | 30 | 35.4 | 12 |
| HSBC 185 | 185 | 57.5 | 18.2 | 31.75 | 38 | 12 |
| HSBC 240 | 240 | 72.5 | 22 | 40 | 48.2 | 14.25 |
| HSBC 300 | 300 | 72.5 | 24 | 42 | 50 | 14.25 |
| HSBC 400 | 400 | 76.5 | 26 | 48 | 56 | 16 |
| HSBC 500 | 500 | 80 | 30 | 55 | 65 | 16 |
