Specifications

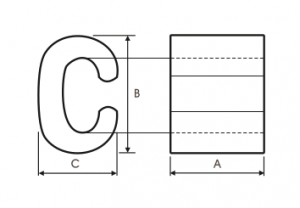

| Cable mm2 | Dimensions | Product Code | ||
| A | B | C | ||
| C6 - C6 | 9 | 9,8 | 6,4 | HCC 6 - 6 |
| C10 - C10 | 12 | 12,6 | 8,4 | HCC 10 - 10 |
| C16 - C16 | 17 | 19,4 | 12,0 | HCC 16 - 16 |
| C25 - C25 | 17 | 21,4 | 13,0 | HCC 25 - 25 |
| C35 - C35 | 21 | 26,6 | 15,6 | HCC 35 - 35 |
| C50 - C50 | 26 | 38,0 | 21,0 | HCC 50 - 50 |
| C70 - C70 | 28 | 34,0 | 21,0 | HCC 70 - 70 |
| C95 - C95 | 29 | 41,0 | 26,0 | HCC 95 - 95 |
| C120 - C120 | 30 | 45,0 | 28,0 | HCC 120 - 120 |
| C150 - C150 | 30 | 48,0 | 28,0 | HCC 150 - 150 |
| C185 - C185 | 32 | 52,0 | 32,0 | HCC 185 - 185 |
| C240 - C240 | 32 | 55,0 | 38,0 | HCC 240 - 240 |
