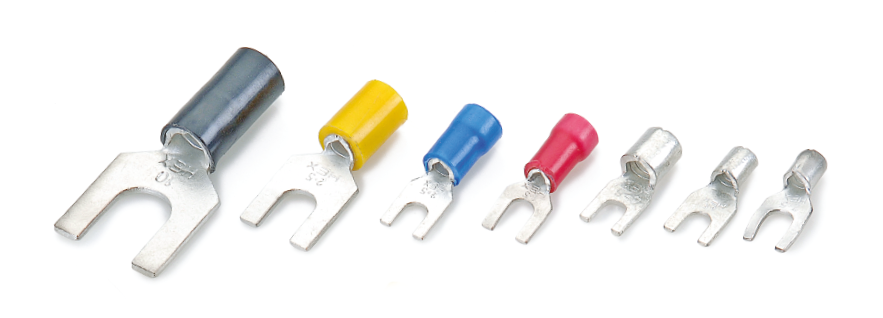

FORK TYPE TERMINAL ENDS: This type of terminal ends are mainly used with flexible wires, cords, control cables, control panel/switchboards, contractors etc. according to the requirements. They are made of high conductivity copper and are used for crimping.

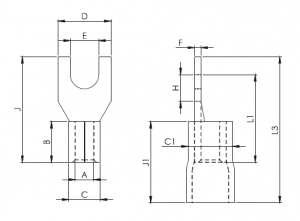

| Cable mm2 | Stud Hole E | Dimensions | Non Insulated | Dimensions | Insulated | |||||||||
| A | C | D | F | B | H | J L-1 | Product Code | C-1 | J-1 | L-3 | Product Code | |||
| 1.5 | 5.1 | 1.6 | 3.2 | 8 | 0.8 | 5 | 10 | 21 | 17 | HF 7214 | 4.8 | 10 | 27 | HFI 7925 |
| 3.5 | 1.6 | 3.2 | 6.8 | 0.8 | 4 | 4.8 | 13 | 8.8 | HF 7249 | 4.8 | 10 | 20.8 | HFI 7926 | |
| 3 | 2 | 2.8 | 6.2 | 0.4 | 5 | 3.1 | 13 | 10.5 | HF 7250 | 4.8 | 10 | 20.5 | HFI 7927 | |
| 2.5 | 3.5 | 2.3 | 3.9 | 6.5 | 0.8 | 5 | 4.3 | 15 | 11.8 | HF 7251 | 5.5 | 10 | 21.8 | HFI 7928 |
| 5 | 2.6 | 4.6 | 10.6 | 1.6 | 6.2 | 6.2 | 21 | 12.4 | HF 7280 | 5.5 | 10 | 20 | HFI 7929 | |
| 4-6 | 3.1 | 3.5 | 5.5 | 6 | 1 | 6 | 5.5 | 15 | 11.5 | HF 7252 | 7.1 | 14 | 27.5 | HFI 7930 |
| 3.5 | 3.5 | 5.5 | 6 | 1 | 6 | 5 | 15 | 11 | HF 7253 | 7.1 | 14 | 27 | HFI 7931 | |
| 10 | 6.5 | 4.5 | 6.9 | 16 | 1.2 | 8 | 11 | 27 | 19 | HF 7254 | 7.9 | 16 | 35 | HFI 7932 |
| 8.2 | 4.5 | 6.9 | 16 | 1.2 | 8 | 11 | 27 | 19 | HF 7255 | 7.9 | 16 | 35 | HFI 7933 |
